GMP

Liquid

Bulk Filling Machine

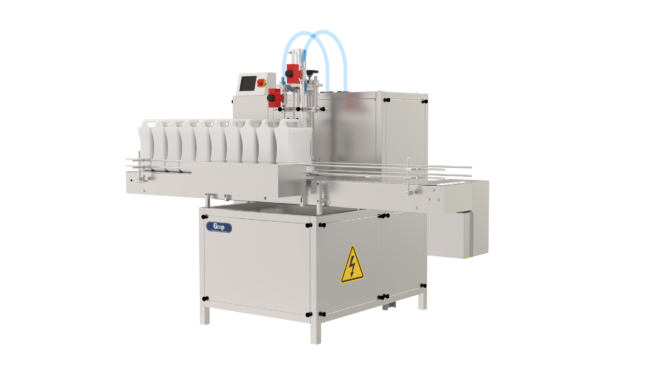

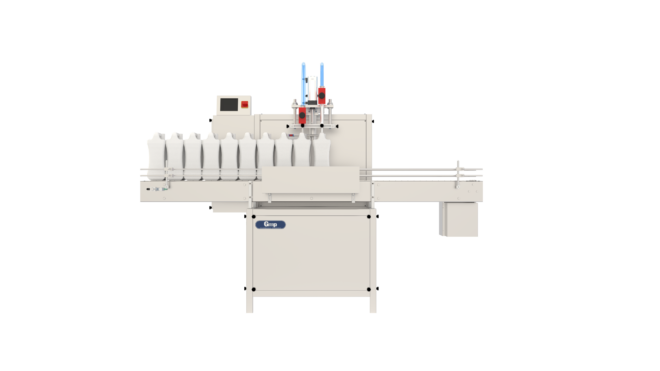

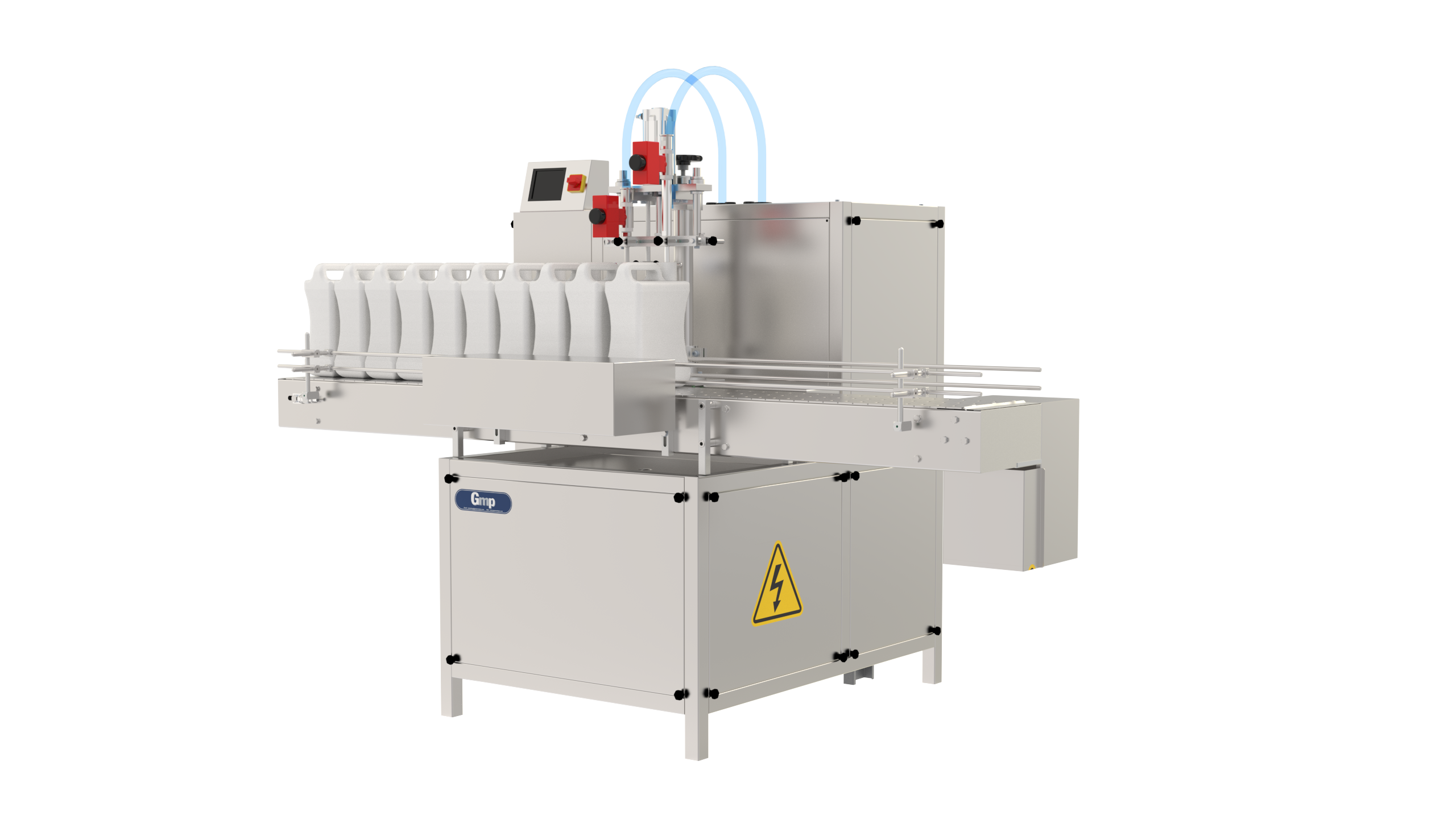

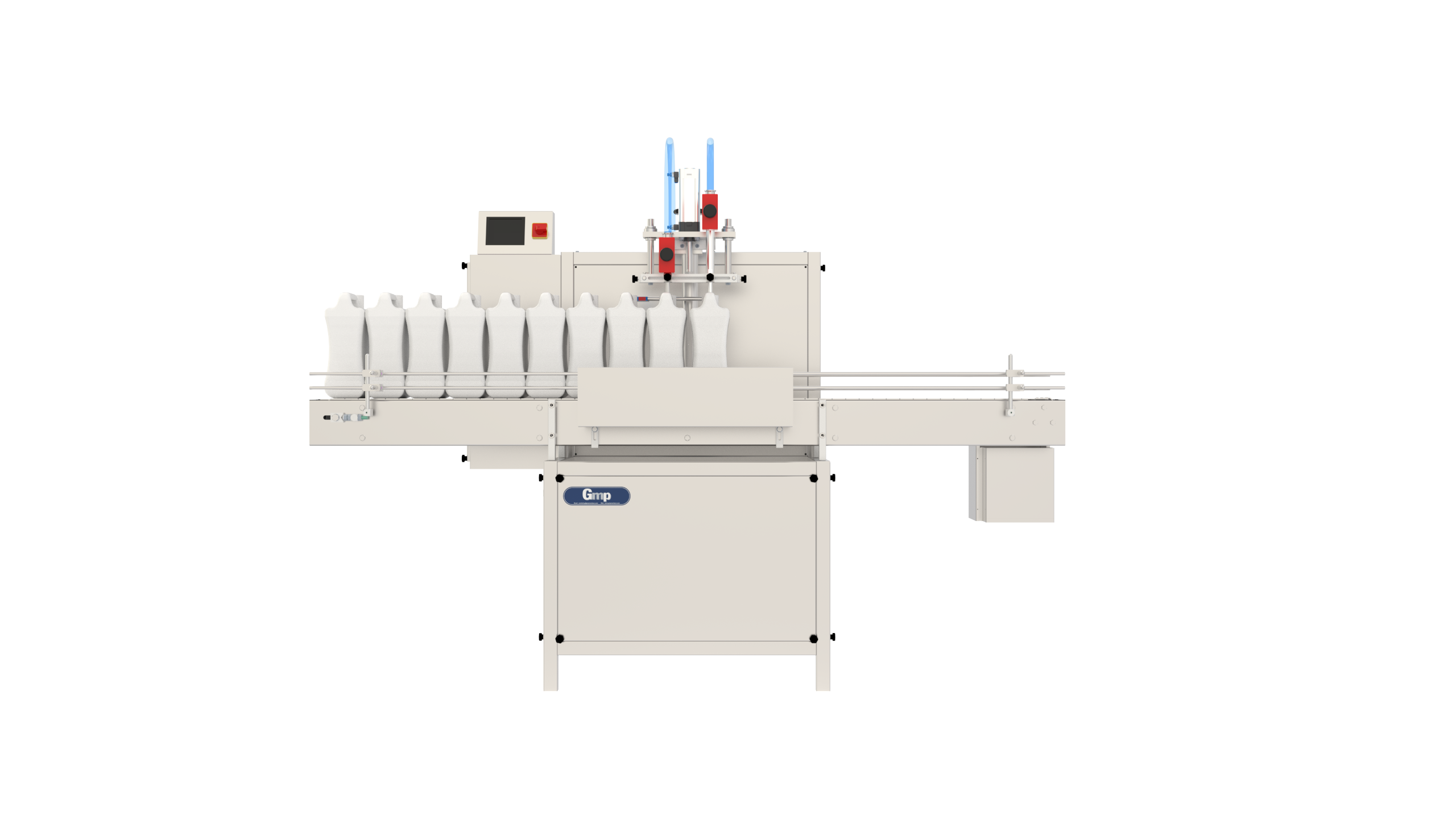

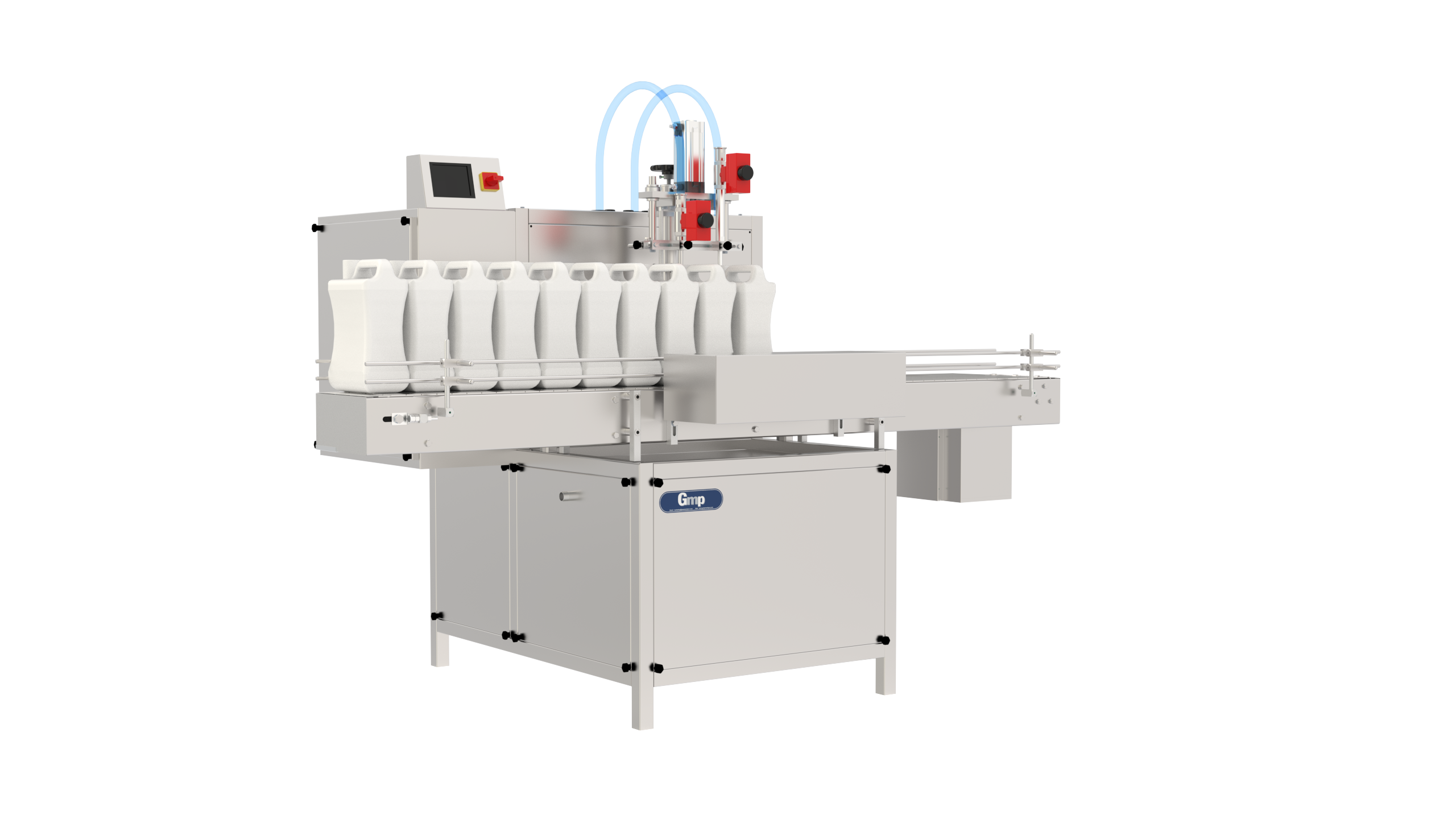

“GMP’s” Automatic Bulk Filling Machine is precision built on a sturdy welded steel frame completely enclosed in stainless steel sheet and doors are provided to facilitate the servicing of the machine. The machine works on VOLUME = TIME TECHNOLOGY AND SPEED = FLOW RATE. “No container-No filling” system arrangement is standard features of the machine. The unit is best for filling a variety of liquids in various types of BIG SIZE containers.

Salient Features:

• Accuracy ± 0.8 % or 0.5 Gram in a single dose (Whichever is higher).

• No change parts require.

• Individual volume control for all Pumps.

• Different speeds can be set, depending on filling volume and foaming nature of the material.

• Body covered with SS sheet.

• All contact parts are silicon tubing / S.S.316.

• A unit to fill a variety of liquids in various types of containers.

• No dripping or last drop problem.

• No contamination.

• No maintenance required.

• No bottle No filling system.

• Facility provided for the fine-tuning of the volume.

• Inbuilt protection against over current, voltage fluctuation, short circuit in ac frequency drive.

• Ideal for aseptic, sheer-sensitive, viscous, and corrosive liquids also.

Read more

Send Enquiry

Category

Model

Head/ Nozzle 2 / 4 / 6 / 8

Output/ Hour*

Up to 1500

Fill Size

Up to 5 Litre

Electric Specifications

Filling Section

3.00 KW/ 415 Volts/ 50 Hz.

Conveyor

0.5 HP/ 415 Volts/ 50 Hz.

Height of Conveyor

860 mm to 910 mm Adjustable
