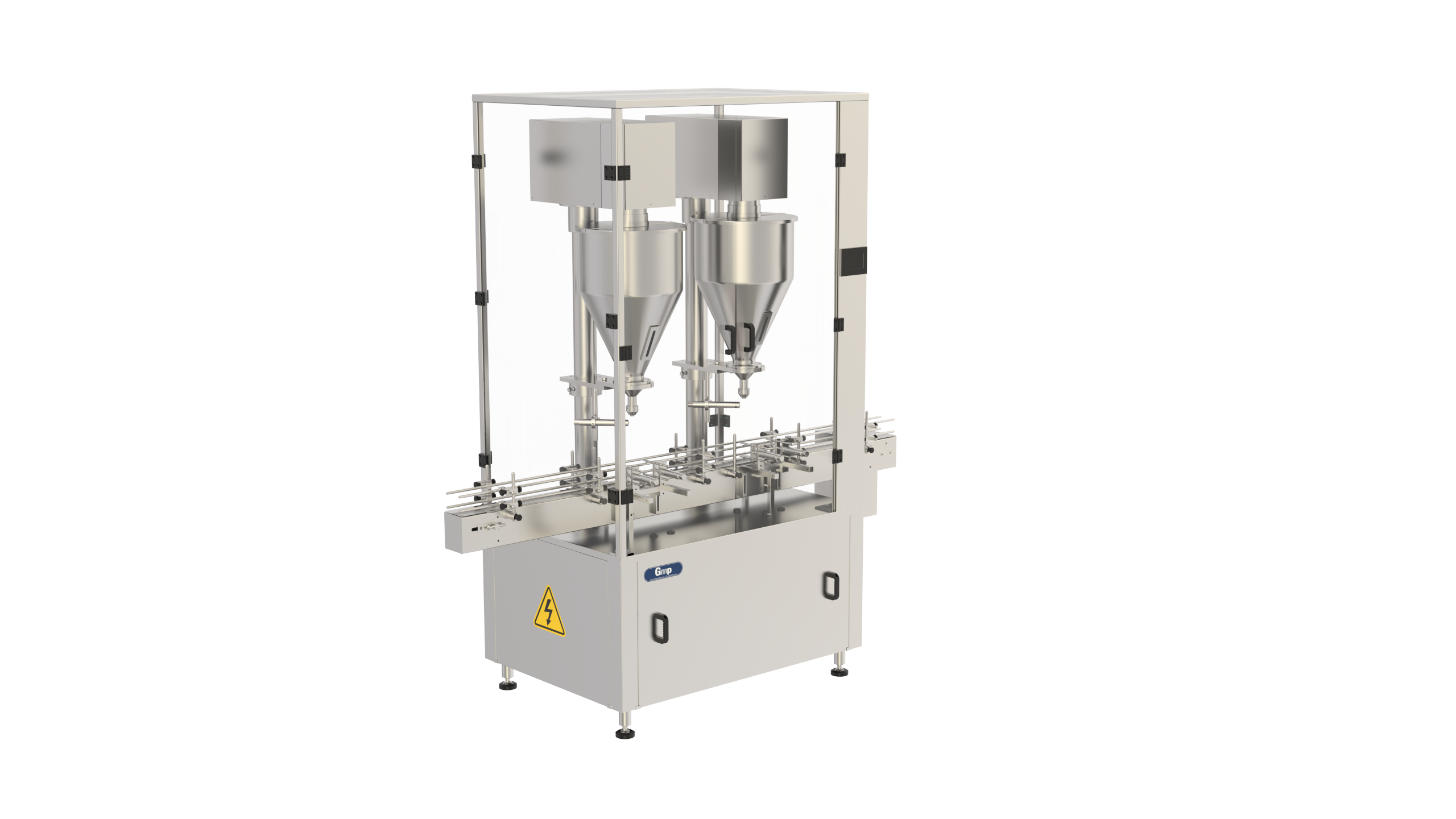

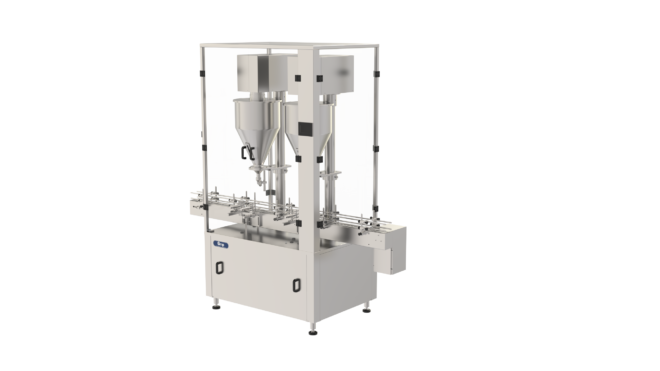

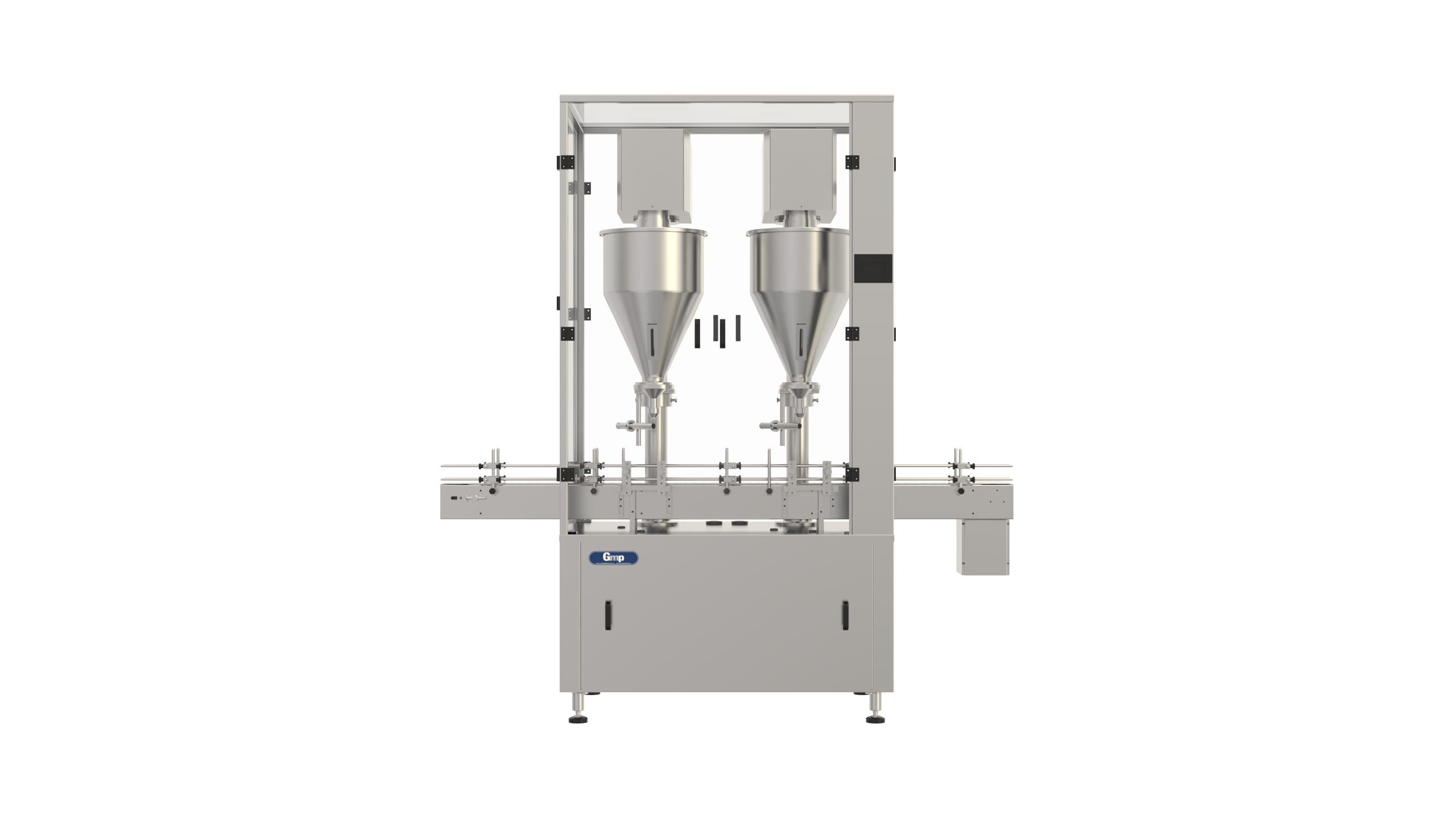

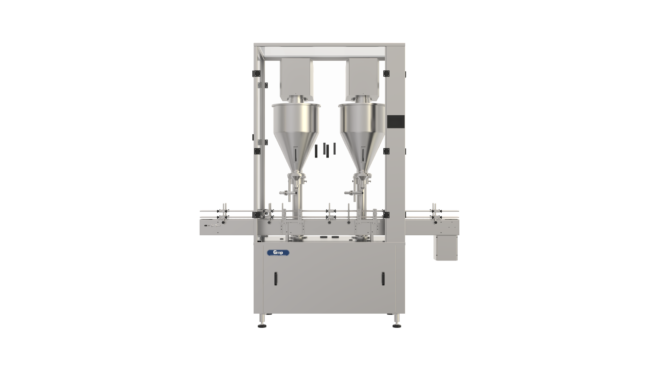

Automatic Linear Auger Filling Machine

“GMP’s” Automatic Auger (Servo) type Dry Syrup Powder Filling Machine is a compact model used for filling dry syrup powder in bottles. The machine is self-supported on a stainless steel leg with a height-adjustable adjustment system.

Salient Features:

• ± 1 % Filling accuracy on a single dose.

• Servo-operated Auger System.

• No Bottle No Filling System.

• Rigid vibration-free construction for trouble-free performance.

• SS Elegantly matt finished body.

• Elegant and easy control panel for total control on operation.

• Minimum change overtime, from one size to another container or fill size.

• Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction, smooth and noiseless conveying.

• Dust Extraction port at the filling station.

Read more

Send Enquiry

Category

Model

Head 1

Head 2

Output/ Minute (on free flow powder)*

20 - 35 BPM@15 gms

40 - 50 BPM@15 gms

Direction of Movement

Left to Right

Electric Specifications

No. of Cleaning Nozzles

01 Nos.

02 Nos.

Stirrer Motor

0.5 HP - 01 Nos.

0.5 HP - 02 Nos.

Conveyor Motor

0.5 HP - 01 Nos.

0.5 HP - 01 Nos.

Servo Motor

750 Watt - 01 Nos.

750 Watt - 02 Nos.

Height of Conveyor (mm)

860 3 50 mm
