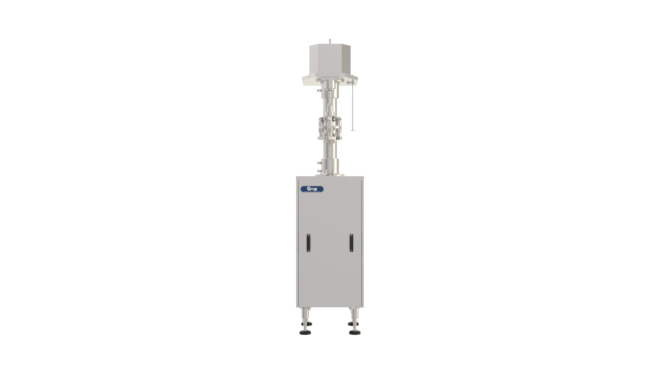

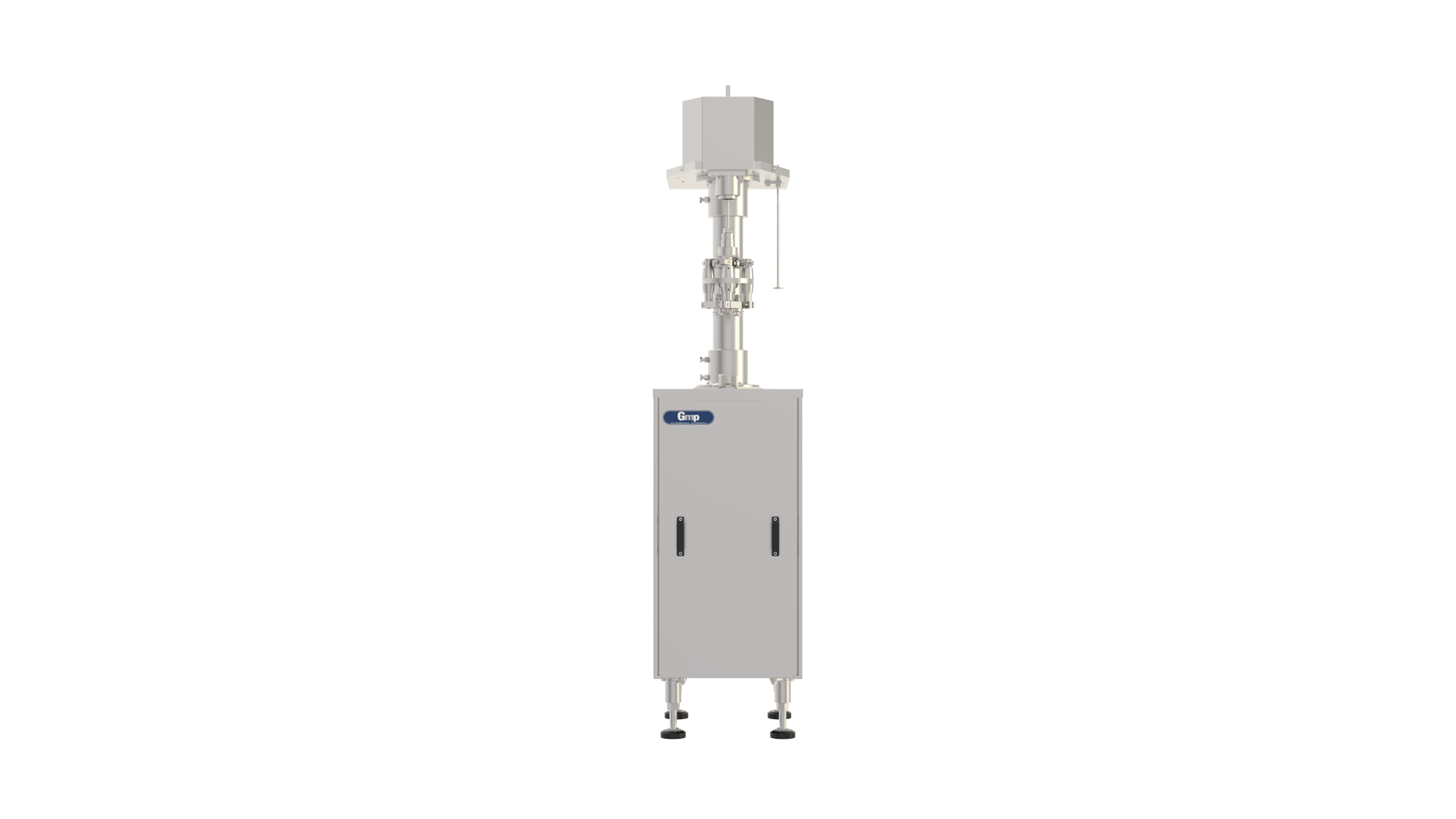

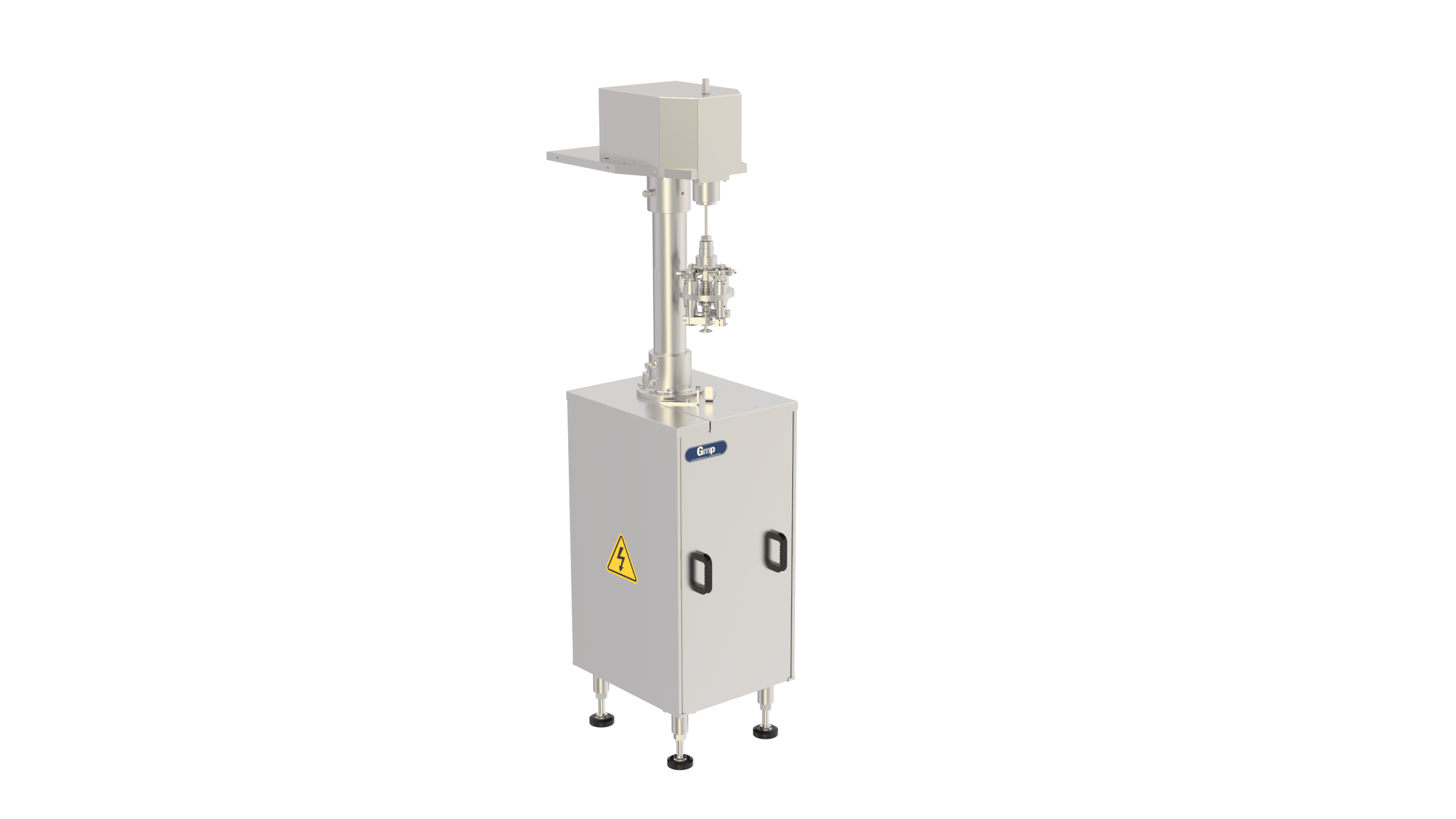

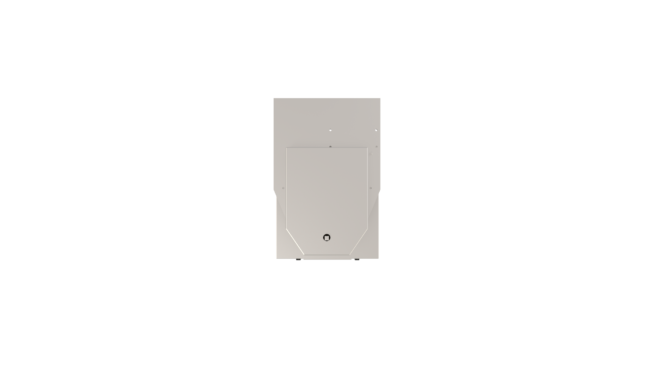

Semi Automatic Ropp/ Screw CAP Sealing Machine

“GMP’s” Semi-Automatic Cap Sealing Machine is precision built on a sturdy welded steel frame completely enclosing in stainless steel sheet, and doors are provided to facilitate the servicing of the machine. The machine is motorized incorporating rotating threading & sealing rollers, for threading & sealing of ROPP cap.

Salient Features:

• The unit is made compact & versatile.

• S.S. Elegantly Matt Finished Body.

• Built-in front control panel.

• Motorized head movement.

• No change parts require for different container diameter.

• Low noise level, low power consumptions.

• Adjustable bottle height gauge for easy and quick setting.

• SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.

• Sealing pressure can be varied to suit different gauges and size of caps.

Read more

Send Enquiry



GMP - Head 1

Output/ Hour*

1000 to 2400 Containers.

No. of Sealing Head

1 Nos.

Electrical Motor**

0.5 HP/ 440 Volts/ 3 Phase/ 50 Hz (Four Wire) for Main Machine

Overall Dimension

435 mm(L) x 590 mm(W) x 1300 (H) Approx.

Case Dimension

650 mm(L) x 800 mm(W) x 1500 (H) Approx.

Net Weight

170 Kgs. Approx.

Gross Weight

350 Kgs. Approx.

Change Parts required

Cap Die if Cap Diameter Change.
