Model | Head 4 | Head 6 | Head 8 |
Output/ Hour* | 2400 to 6000 | 3600 to 9000* | 5000 to 12000* |
Direction of Movement | Left to Right | Left to Right | Left to Right |
Number of head/ Syringe | 4 Nos. | 6 Nos. | 8 Nos. |
Fill Size*** | 5 ml to 1000 ml | ||
Electric Specification** | |||
Main Machine | 1 HP/ 415 Volts/ 50 Hz. (1.5/ 2 HP if maximum volume is 1000ml in single doze) | ||
Conveyor | 0.5 HP/ 415 Votls/ 50 Hz. | ||
Height of Conveyor** | 860 mm to 910 mm Adjustable | ||
Machine Dimensions** | 2135 mm(L) x 1150 mm(W) | 2350 mm(L) x 1350 mm(W) | |
x 1610 mm(H) | x 1610 mm(H) | ||
Case Dimensions | 2350 mm(L) x 1350 mm(W) | 2350 mm(L) x 1550 mm(W) | |
x 1650 mm(H) | x 1650 mm(H) | ||
Net Weight | 600 Kgs. | 700 Kgs. | 850 Kgs. |
Gross Weight | 850 Kgs. | 950 Kgs. | 1100 Kgs. |
Change parts required | (A) Syringes | ||
(B) Nozzle | |||
(C) Inlet and outlet hose pipe. | |||

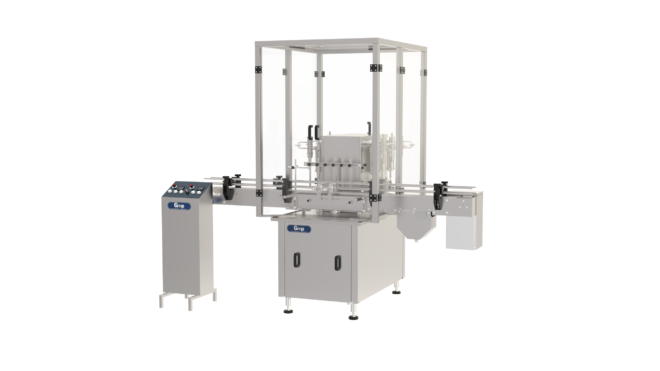

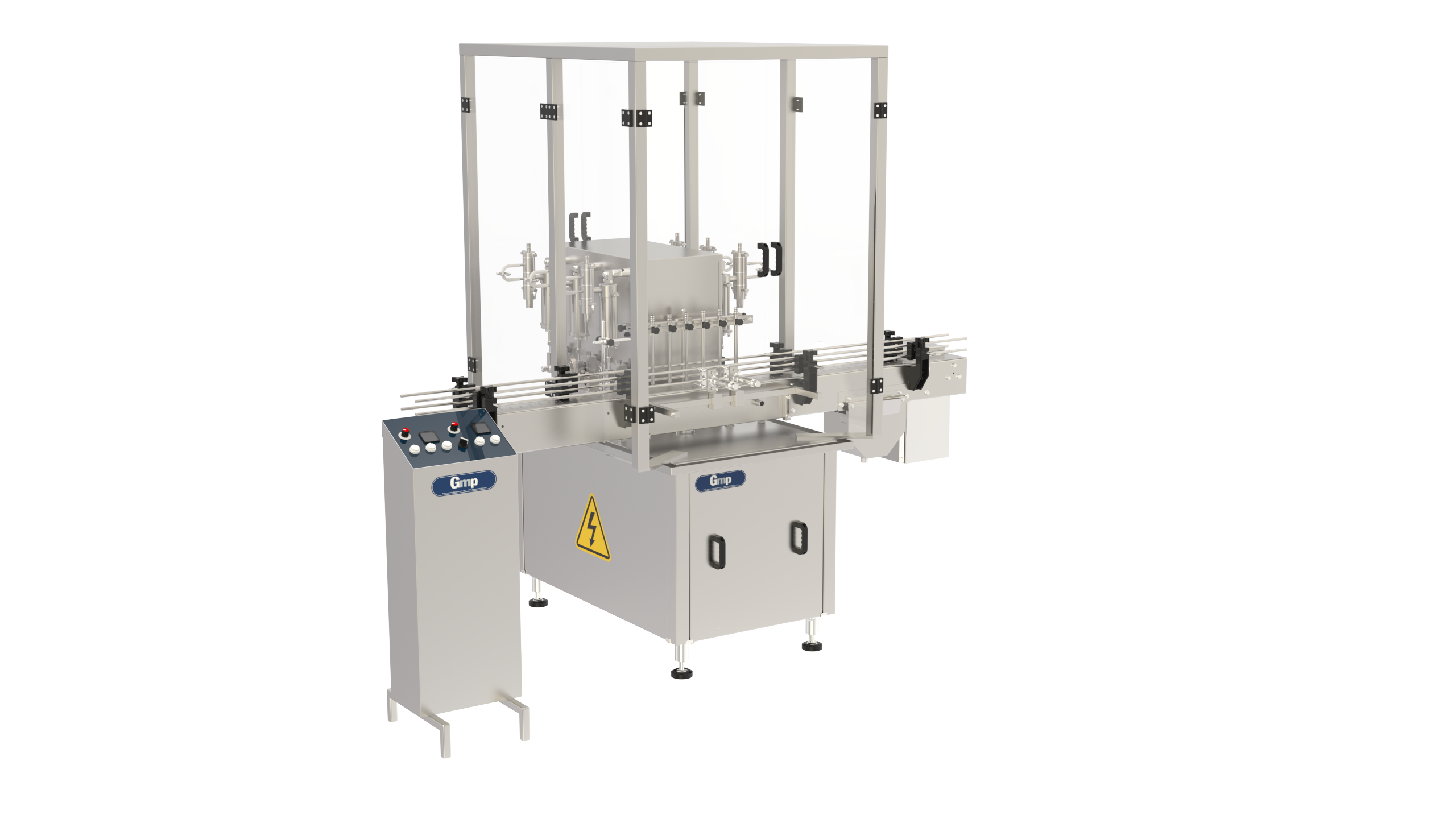

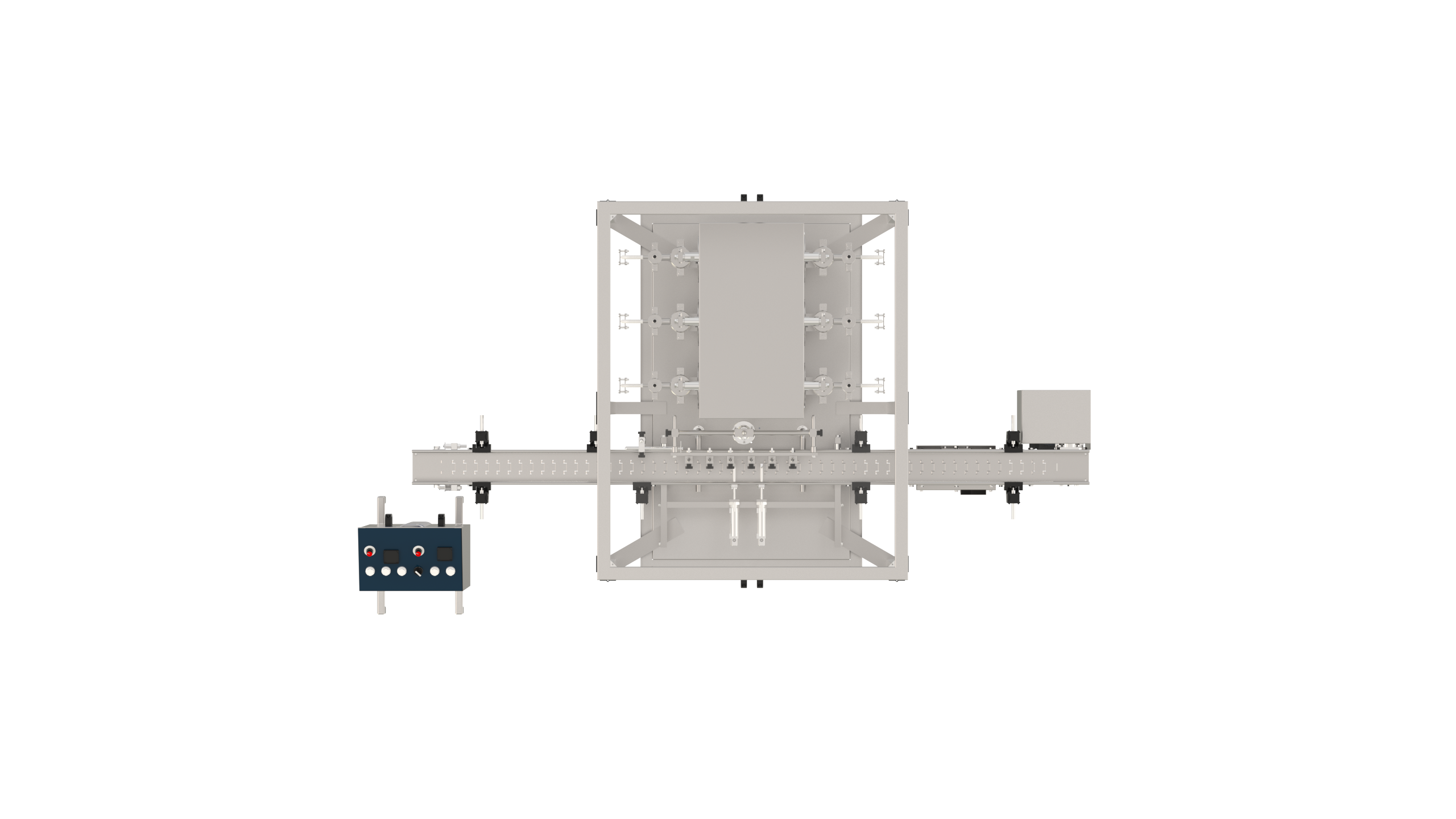

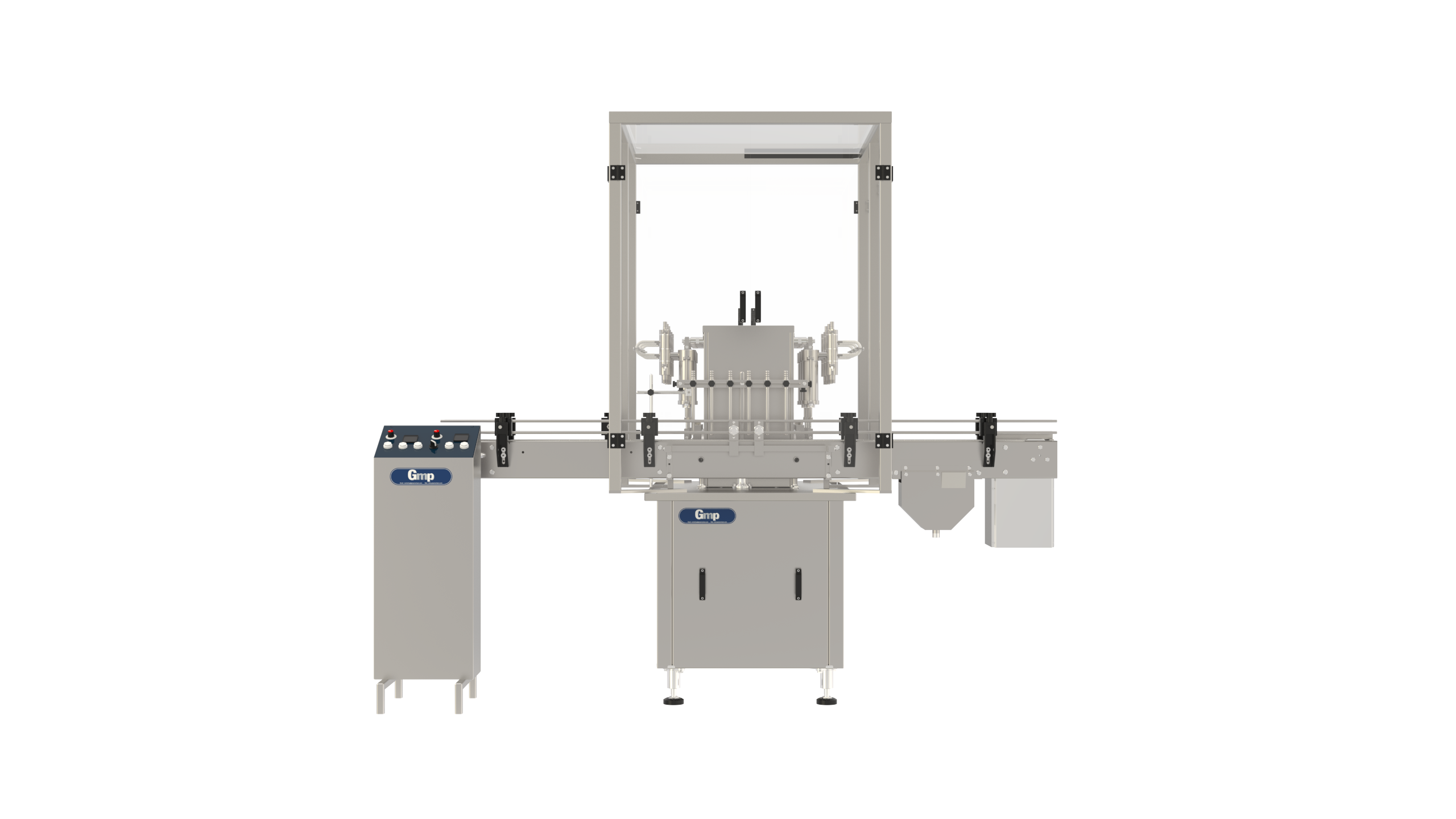

Automatic Volumetric Liquid Bottle Filling Machine
“GMP’s” Automatic Volumetric Liquid Bottle Filling Machine works on volumetric principle with diving nozzles. The unit is made compact, versatile, and enclosed in stainless steel elegantly matt finish body, consists of S.S. Slat Conveyor, Reciprocating Nozzle with self-centring devices & SS Syringe. No container No filling system arrangement is standard features of the machine. The main drive of the machine and conveyor drive consist of A/c Motor with synchronized variable A/c Frequency Drive.
Salient Features:
• ± 1% Filling accuracy on a single dose.
• No Bottle No Filling System.
• Rigid vibration-free construction for trouble-free performance.
• SS Elegantly matt finished body.
• Elegant and easy control panel for total control on operation.
• Minimum change overtime.
• Self-lubricating UHMW-PE guide profile for S.S. slat chain to provide low friction, smooth and noiseless conveying.
• Error code display on A/c frequency drive on the control panel.
• Drain tray around the machine platform.
• Drip tray under the conveyor.
• Pneumatic bottle stopping arrangement.
• Synchronized two nos. A/c drives for the main motor & conveyor belt.
• Safety guard for conveyor gearbox, motor and pneumatic cylinders.
• MCB for overload protection and prevent against short circuit.
• Inbuilt protection against over current, voltage fluctuation, short circuit in A/c frequency drive.
