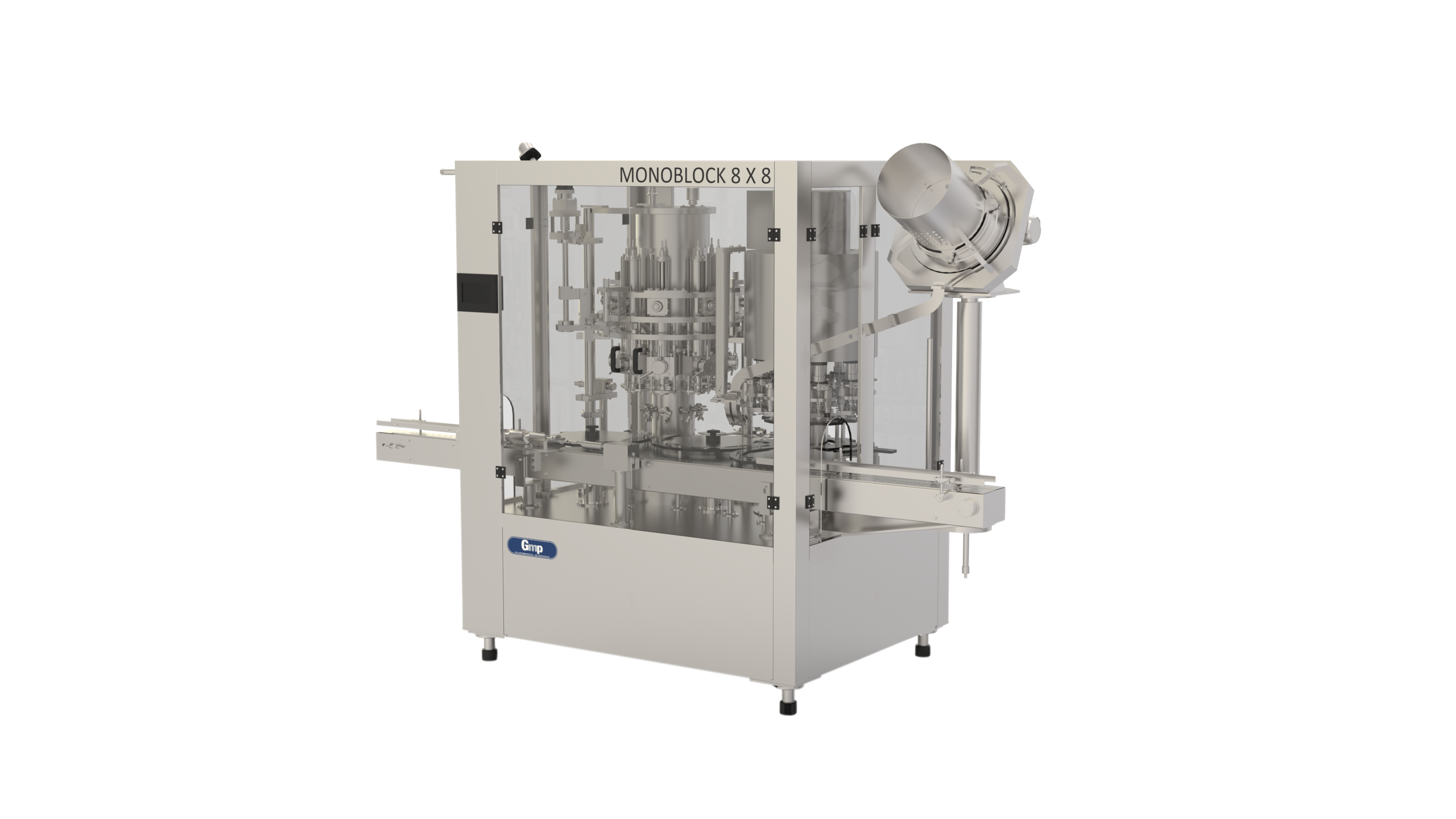

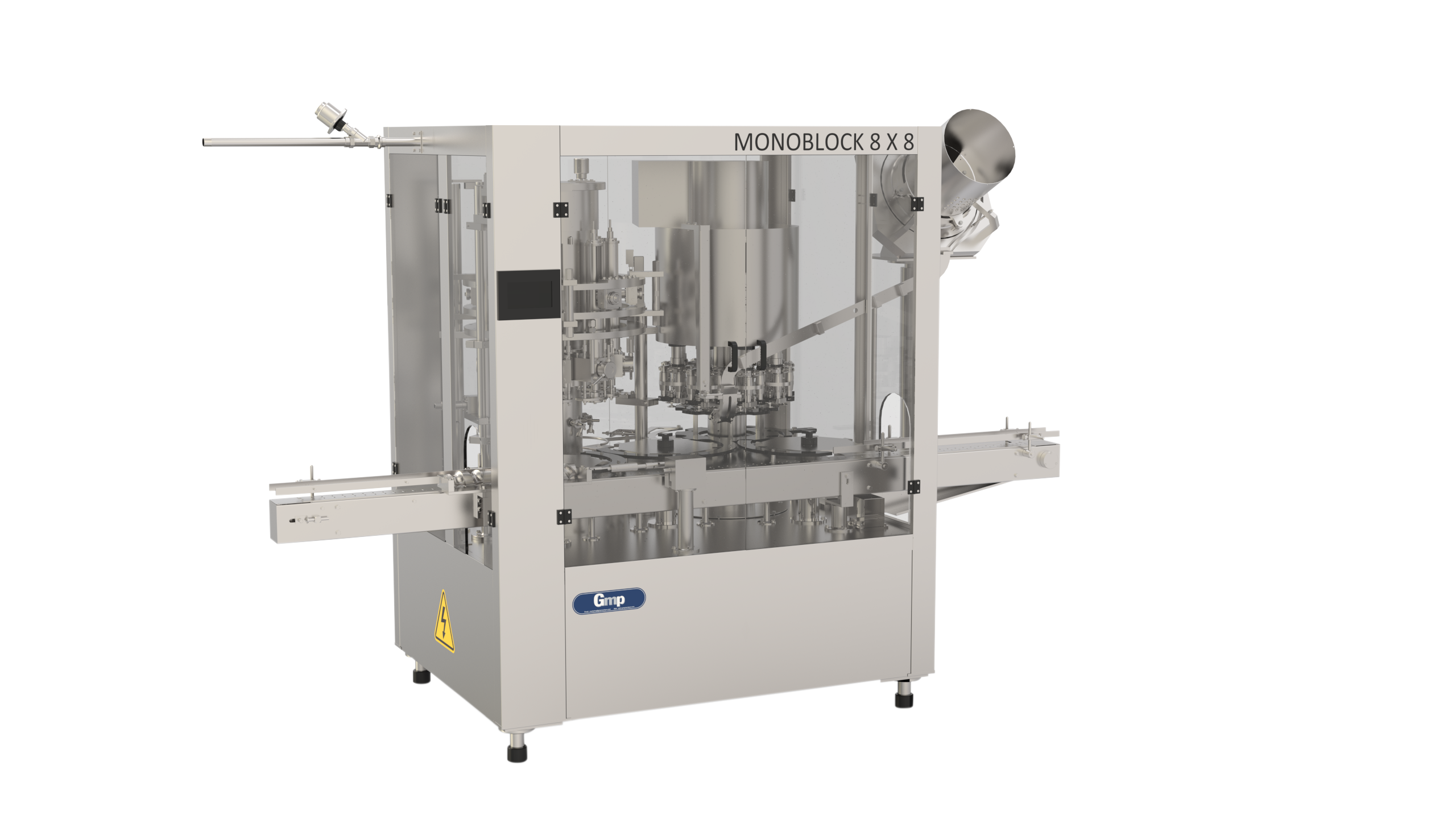

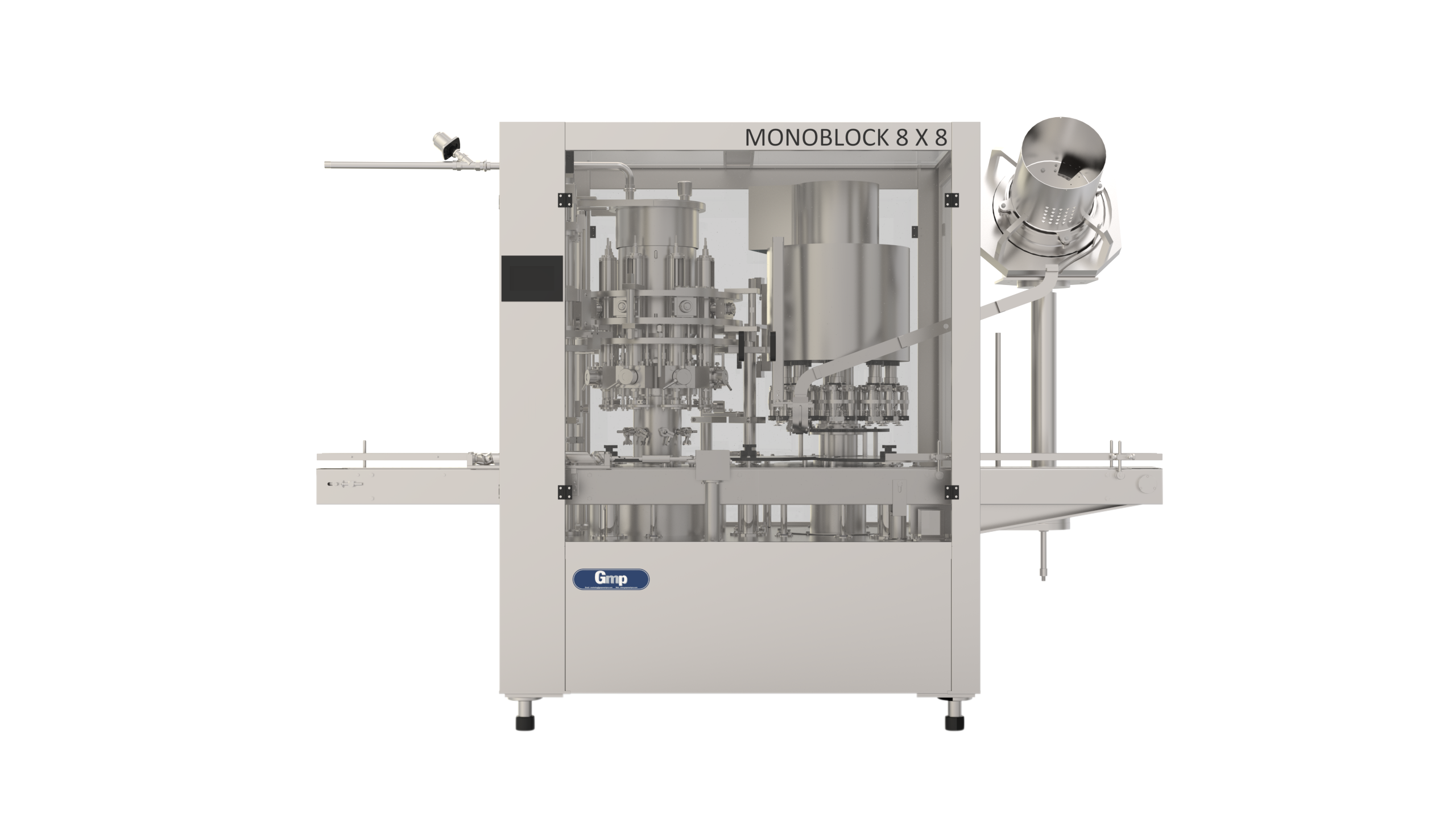

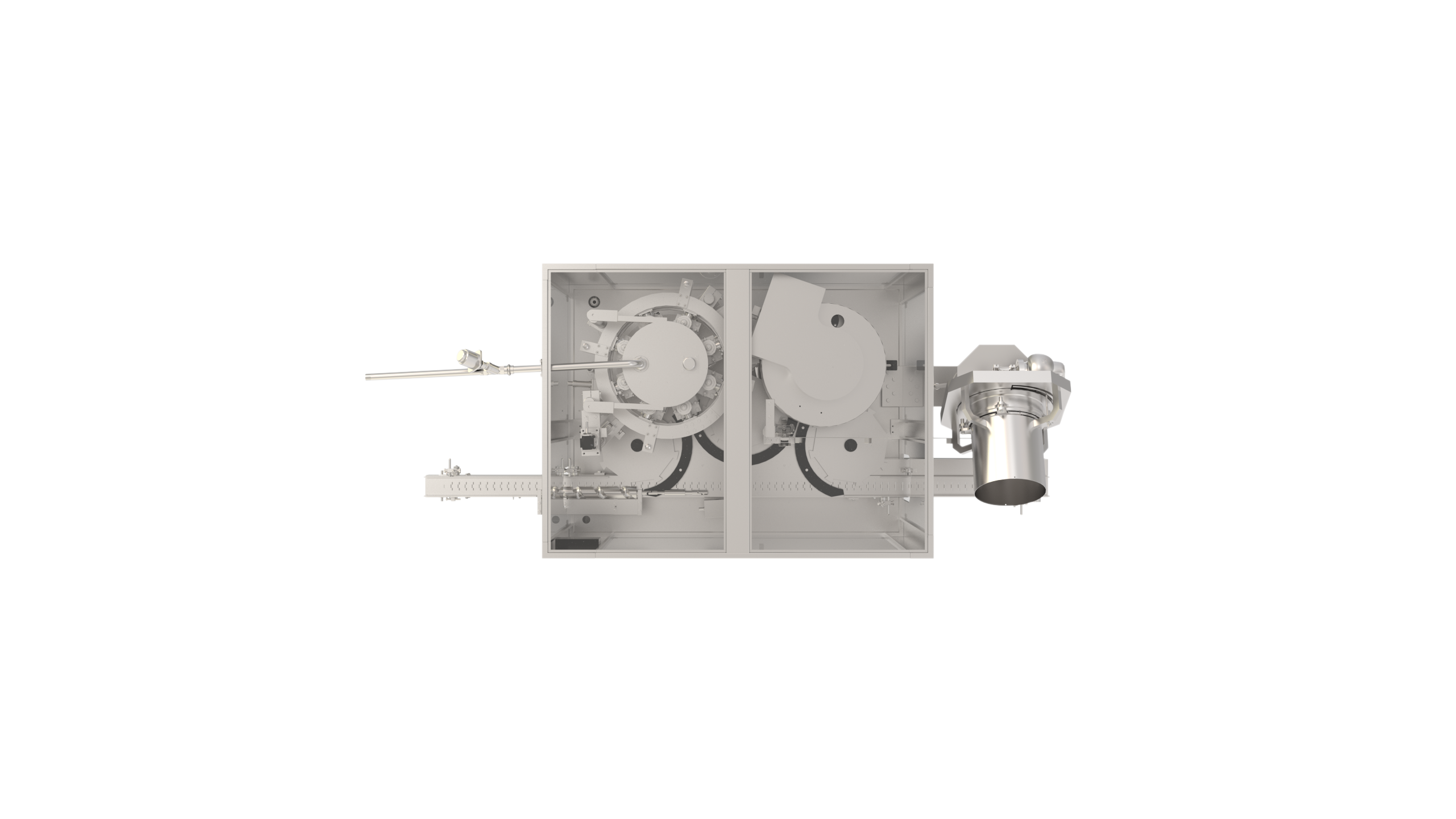

Automatic Rotary Piston Filling Cum Sealing Machine

“GMP’s” Automatic Rotary Piston Filling Cum Sealing Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is built on a sturdy welded steel frame, completely enclosed in stainless steel sheet and acrylic doors. This machine works on volumetric principle with rotary motion, so it’s compact in design. No container No filling & No sealing system arrangement is standard features of the machine. The main drive of the machine, & cap-feeding bowl consist of A/c Motor with variable A/c Frequency Drive.

Salient Features:

• “GMP” Model based on advanced technology.

• Single Operator for Two Operations.

• Less Floor Area -as both the sections driven by one motor.

• No Contamination – as immediate sealing of filled bottles.

• Accuracy ± 1% due to piston dozing principle.

• No Bottle No Fill for Individual head, hence no spillage.

• Placing of Cap Feeder Outside Monoblock-avoid entering of dust in it.

• Additional Sensor for Minimum and Maximum Level of Cap in chute which automatically Start and stop rotary cap feeder to avoid Damage of caps during Rotation and Waste of Energy.

• Better finish – imported polished, laminated S.S. sheet used.

• Electronic liquid level controller and pneumatically controlled valve.

• Self-Lubricating UHMW-PE guide profile for S.S. slat chain to provide low friction, smooth and noiseless conveying.

• Universal Coupling for quick and easy setting of In-feed worm.

• Safety Guard for Operation and Protection.

Read more

Send Enquiry

Category

Model

6/6

8/8

12/8

16/8

20/10

Output/ Hour*

2500 to 7500

4000 to 9500

6000 to 11000

6000 to 13500

8000 to 16000

Number of filling Heads/ Syringe

6

8

12

16

20

Number of Sealing Heads

6

8

8

8

10

Direction of Movement

Left to Right

Fill Size

30 ml to 200 ml

Main Machine

3 HP/ 415 Volts/ 50 Hz.

5 HP/ 415 Volts/ 50 Hz.

Electric Specifications Oriental Bowl

0.25 HP/ 415 Volts/ 50 Hz.

0.5 HP/ 415 Volts/ 50 Hz.

Conveyor

0.5 HP/ 415 Volts/ 50 Hz.

0.75 HP/ 415 Volts/ 50 Hz.

Height of Conveyor

860 3 50 mm

Change parts required

(A) Container: star Wheel, Back Guide, Feed Worm, Nozzle

(B) Cap: Die, Delivery Chute.

ROPP Cap Diameter

22 mm to 28 mm

Height

18 to 20 mm

Round

Ø 28 mm to Ø 60 mm

Respective Height: 60 mm to 120 mm

Container Size

Length: 30 mm to 70 mm

Flat/ Square

Width: 20 mm to 50 mm

Height: 58 mm to 120 mm

Electric Supply

3 Phase + Neutral + Earthing

Electric Load

3 KW

5 KW

Air Consumption

0.5 CFM@6 kg
