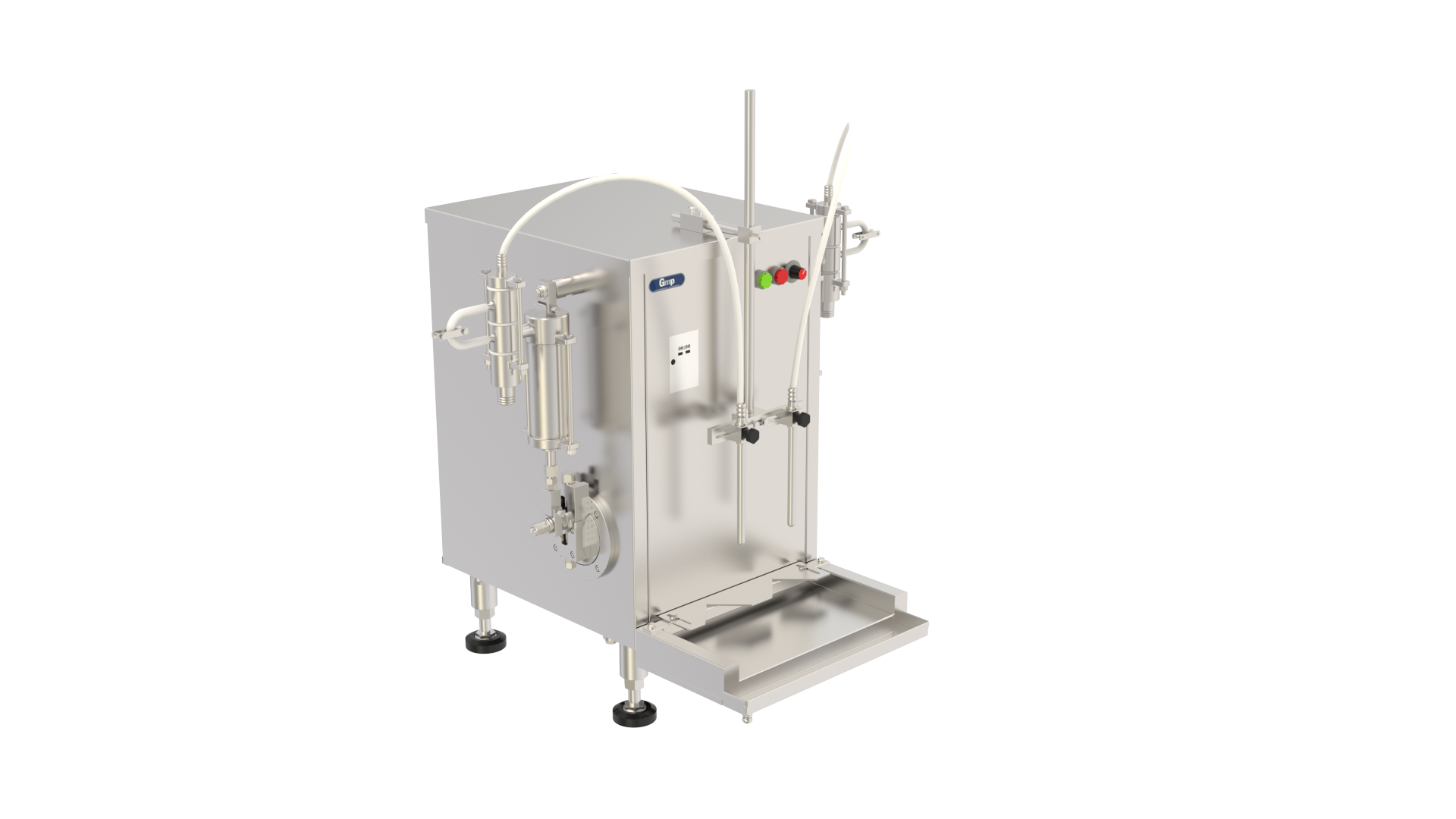

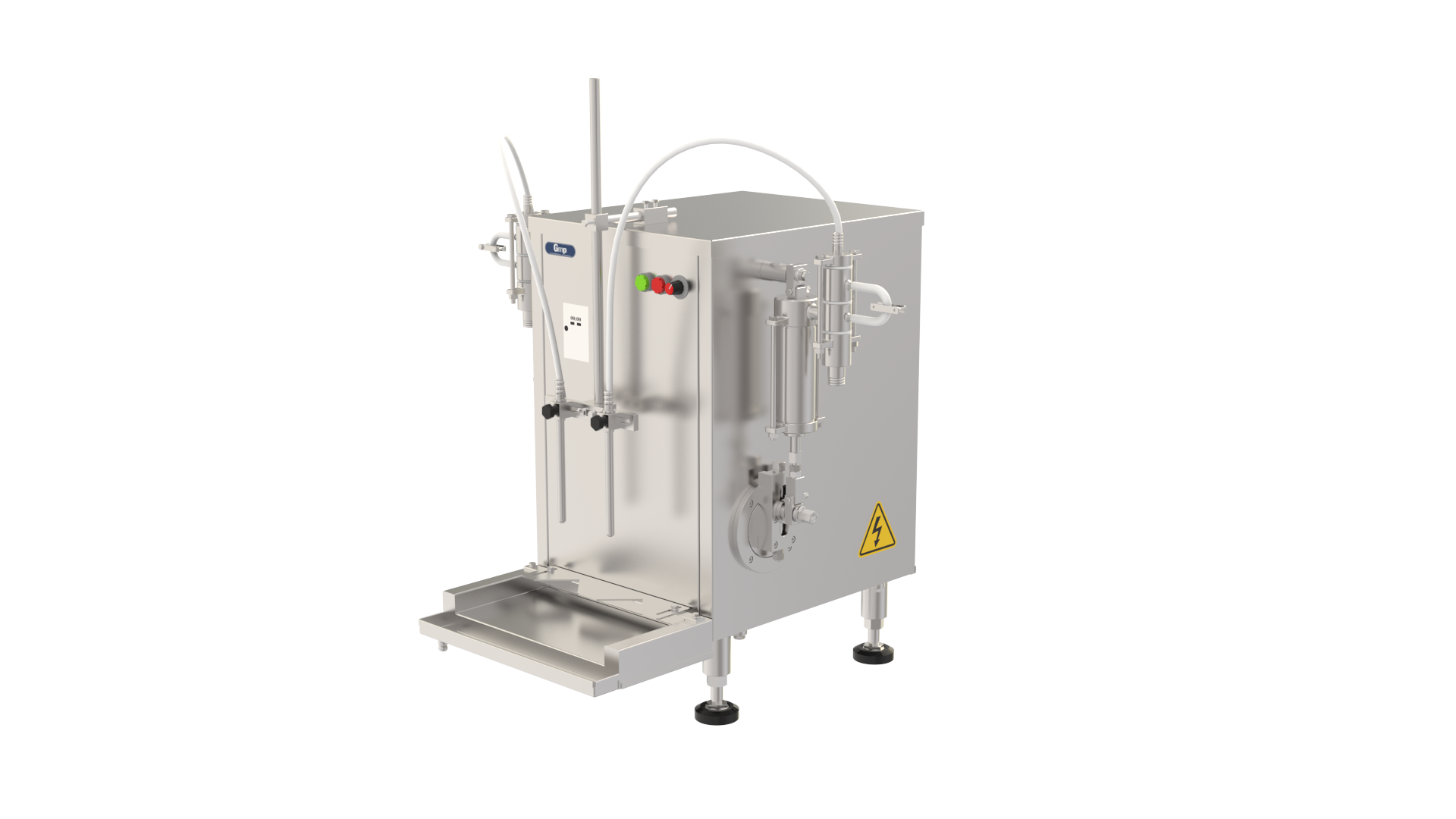

Semi-Automatic Volumetric Liquid Filling Machine

“GMP’s” Semi-Automatic Volumetric Liquid Filling Machine is precision built on sturdy welded steel frame completely enclosed in stainless steel sheet and doors are provided to facilitate the servicing of the machine. Working on volumetric principle. The unit is made compact, versatile, and enclosed in stainless steel elegantly matt finish body.

Salient Features:

• Semi-automatic with a filling range from 5ml to 1000ml.

• Accuracy ± 1% in a single dose.

• Three different speeds depending upon the capacity of bottles.

• Body covered with SS sheet.

• All contact parts SS 316.

• A unit to fill a variety of liquid and can be used for various types of containers.

• Minimum change over time from one size to another container or fill size.

Read more

Send Enquiry

Category

Model

GMP - Head 2

Output/ Hour

700 to 2400*

Number of Head/ Syringe

2 Nos.

Fill Size

5 ml to 1000 ml

Electric Specifications**

0.5 HP/ 415 Volts/ 50 Hz. (Main Machine)

(1 HP if maximum volume is 1000ml in single doze)

Machine Dimensions

915 mm(L) x 900 mm(W) x 1050 mm(H)

Case Dimensions

1100 mm(L) x 900 mm(W) x 1050 mm(H)

Net Weight

120 Kgs.

Gross Weight

310 Kgs.

Change parts required

(A) Syringe. (B) Nozzle (C) Inlet & outlet hose pipe.
