GMP

Liquid

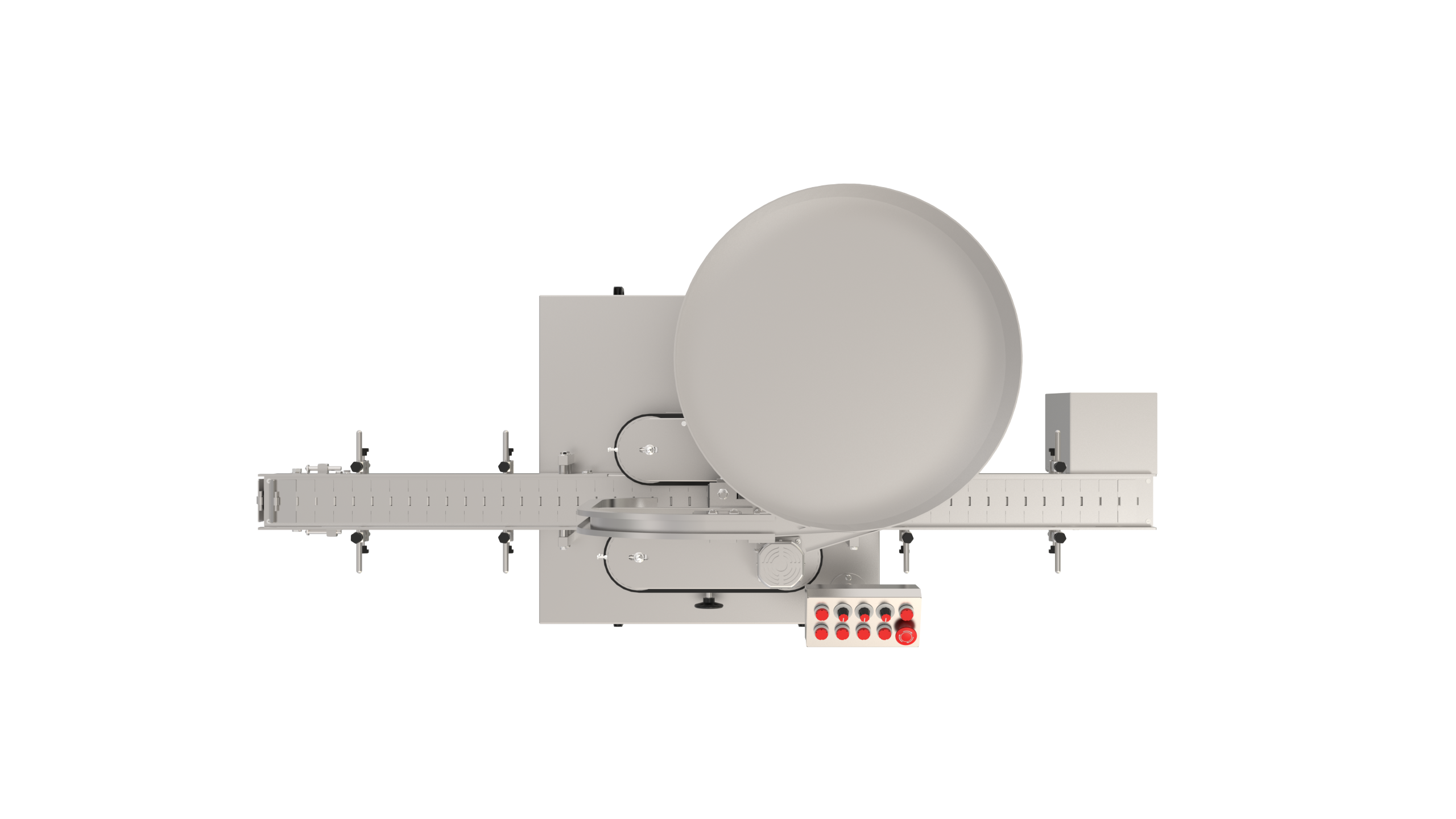

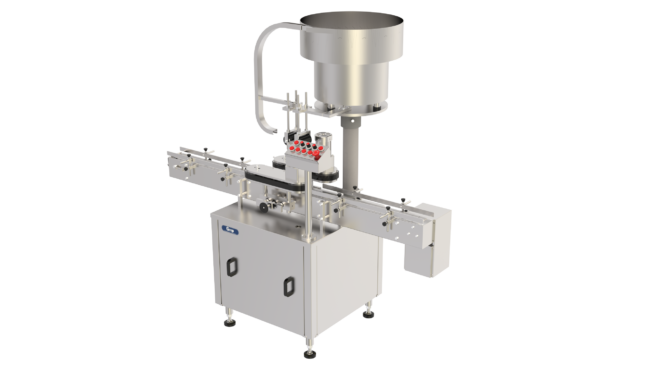

Automatic Measuring/ Dosing Cup Placement & Pressing Machine

“GMP’s”Automatic Measuring Cup Placement & Pressing Machine is a highly efficient machine with an elegant look, consisting of a conveyor, vibrator, Pressing Belt & pressing rollers. All the exposed parts of the unit are in S.S., chrome-plated, or cladded with S.S. The machine is precision built on a sturdy welded M.S. frame completely enclosed in stainless steel sheet, and doors are providing to facilitate the servicing of the machine.

Salient Features:

• No container No cup arrangement.

• SS elegantly matt finished body.

• Adjustable height of conveyor belt, to align with other machines of the line.

• A specially designed hopper is provided to increase the storage capacity of the bowl.

• Low noise level, low power consumption.

• Self-lubricating UHMW-PE guide profile for low friction, smooth and noiseless conveying.

Read more

Send Enquiry

Category

Model

GMP - 250

Output/ Hour*

3500 to 4000 Bottles

Output/ Minute*

Up to 250 BPM

Direction of Movement

Left to Right

Conveyor Motor

0.5 HP/ 415 V

Bottle Delay Drive

0.25 HP/ 415 V

Electric Specifications

Side Belt Drives

0.25 HP/ 415 V x 2

Top Pressing Drive

0.25 HP/ 415 V

Orientor

0.25 HP/ 415 V

Height of Conveyor

860 3 50 mm

Dozing Cup

Diameter

20 mm to 45 mm

Height

25 mm to 40 mm

Container Size

Round

Diameter: Ø 28 mm to Ø 60 mm

Respective Height: 58 mm to 120 mm

Length: 30 mm to 70 mm

Flat / Square

Flat/ Square Width: 20 mm to 50 mm

Height: 58 mm to 120 mm
