GMP

Granulation

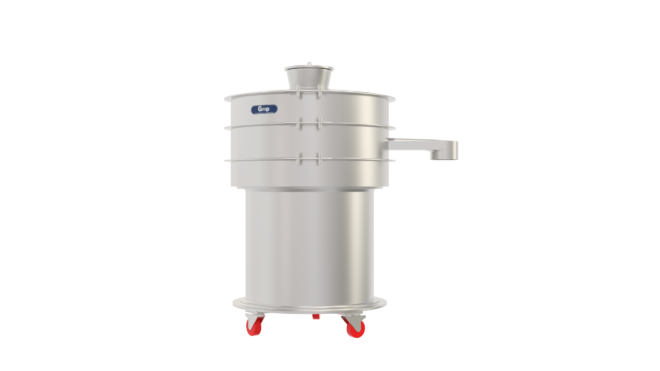

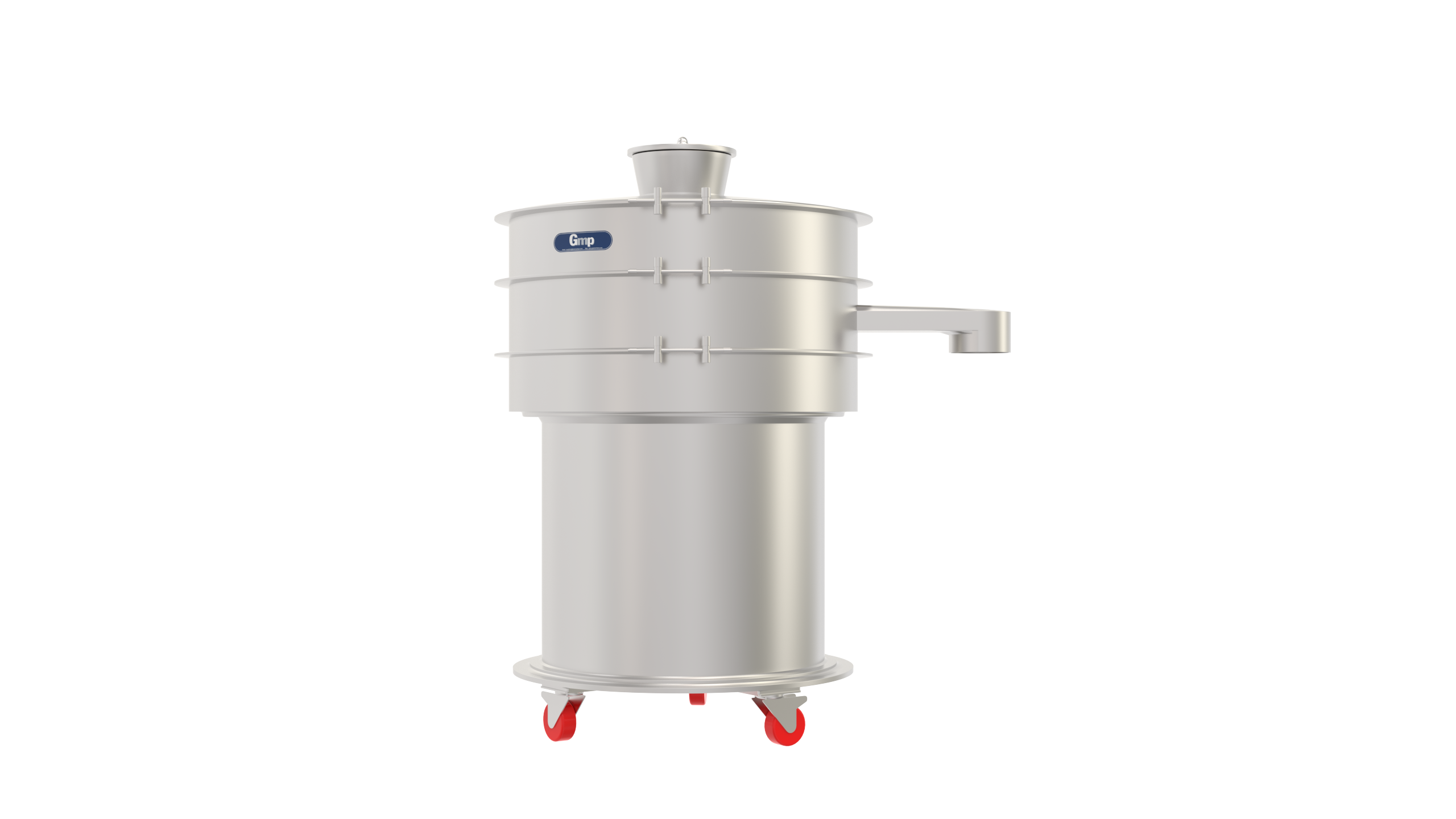

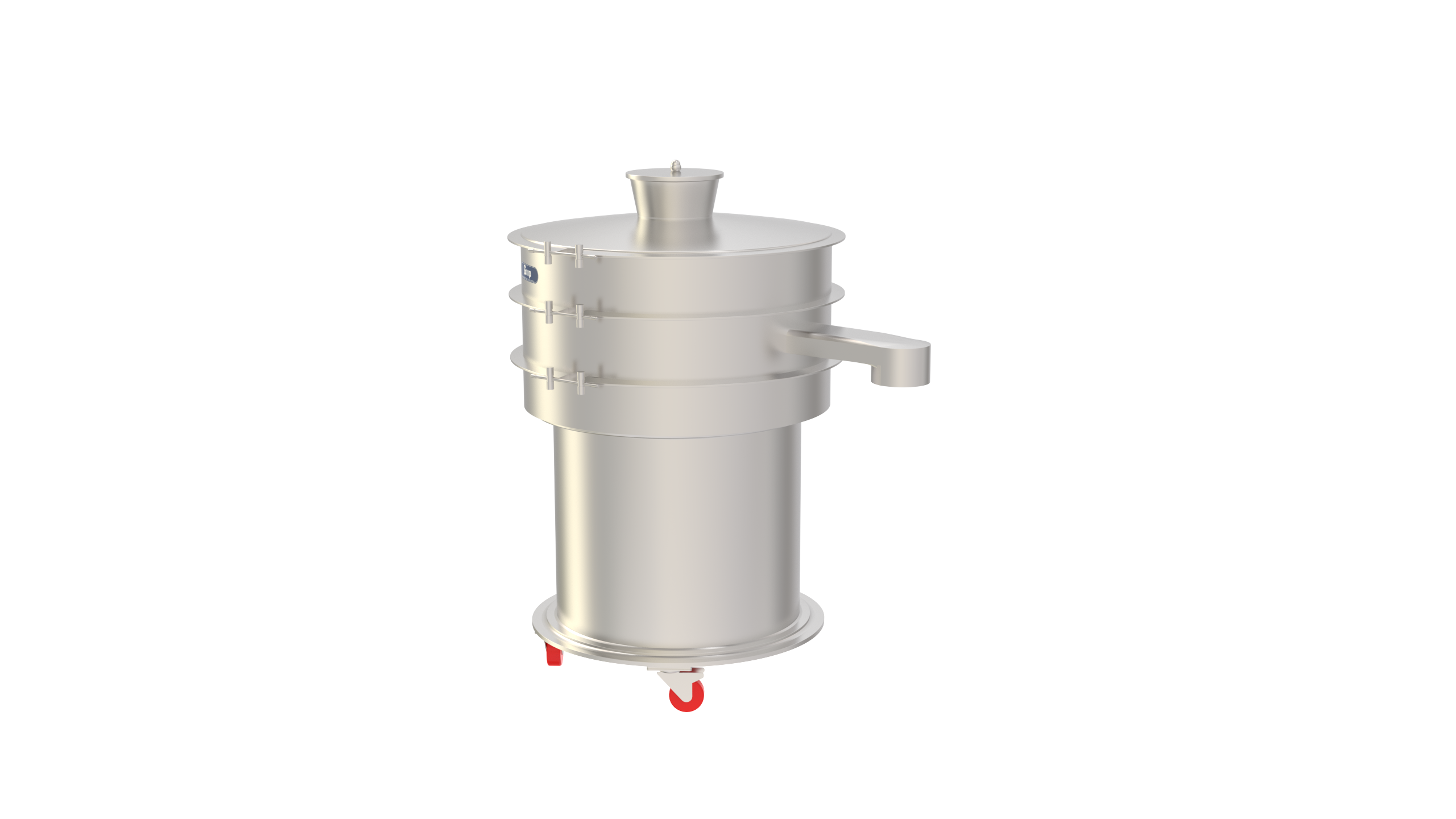

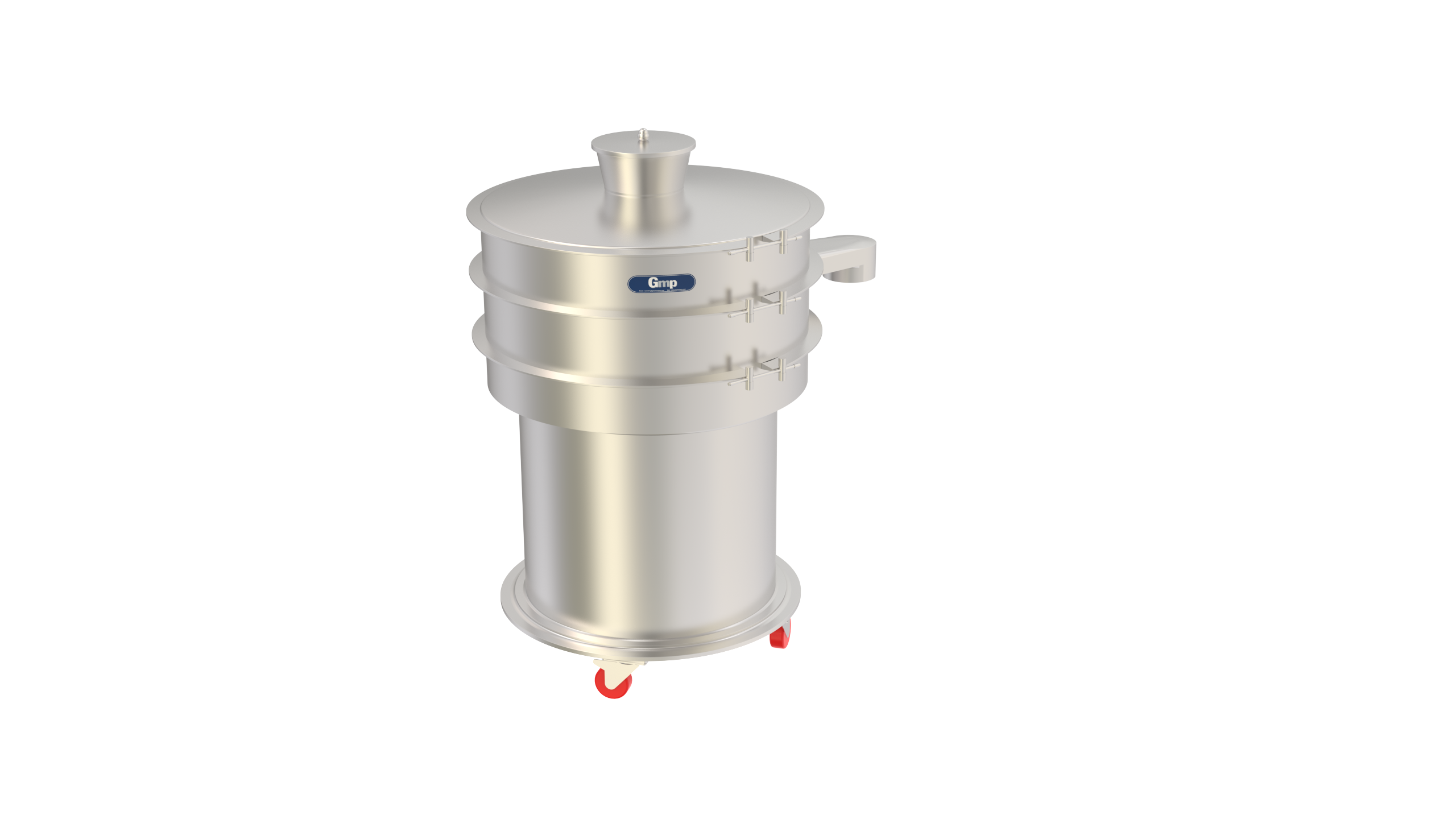

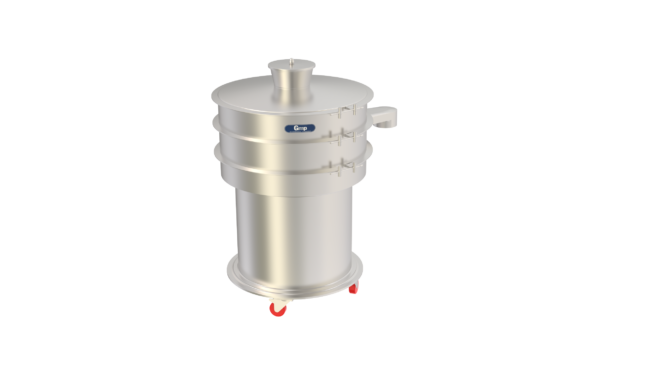

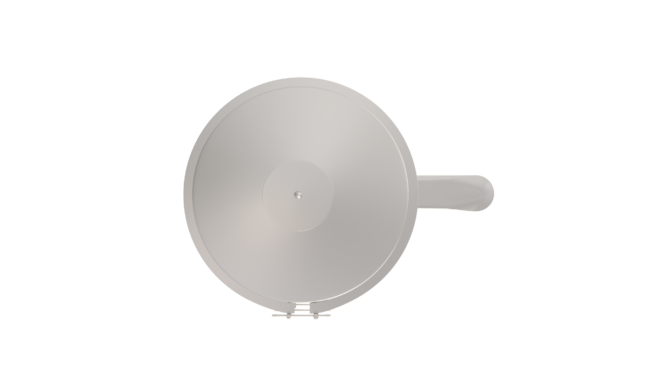

Vibro Sifter

GMP’s Vibro Sifter is designed for accurate sieving of raw materials. Total assembly is mounted on suitable springs so that it becomes an independent body which vibrates without parting any vibrations to the foundations.

Salient Features:

• Noiseless & maintenance-free machine for high-speed sieving.

• Compact & portable.

• All contact parts and screen are made of SS 316.

• Very less power consumption.

• Designed for quick and easy dismantling of contact parts for cleaning.

Optional:

• Double & triple deck options available (optional)

• Flameproof electrical (optional)

Read more

Send Enquiry

Category

Model No.

12"

20"

30"

36"

48"

Screen Dia. (mm)

310

500

750

900

1200

Capacity (Kg/Hour)

1 To 10

20 To 40

100 To 200

200 To 300

300 To 400

Charging Height (mm)

765

1150

1270

1300

1340

Discharge Height (mm)

510

600

730 & 880

775 & 900

910 & 1065

Motor (HP)

0.25

0.25

0.5

1.0

1.5
