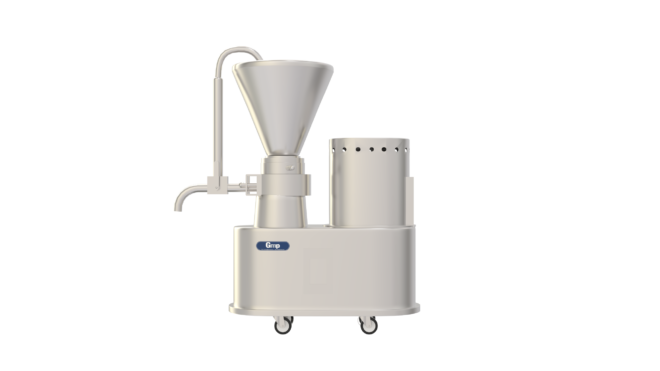

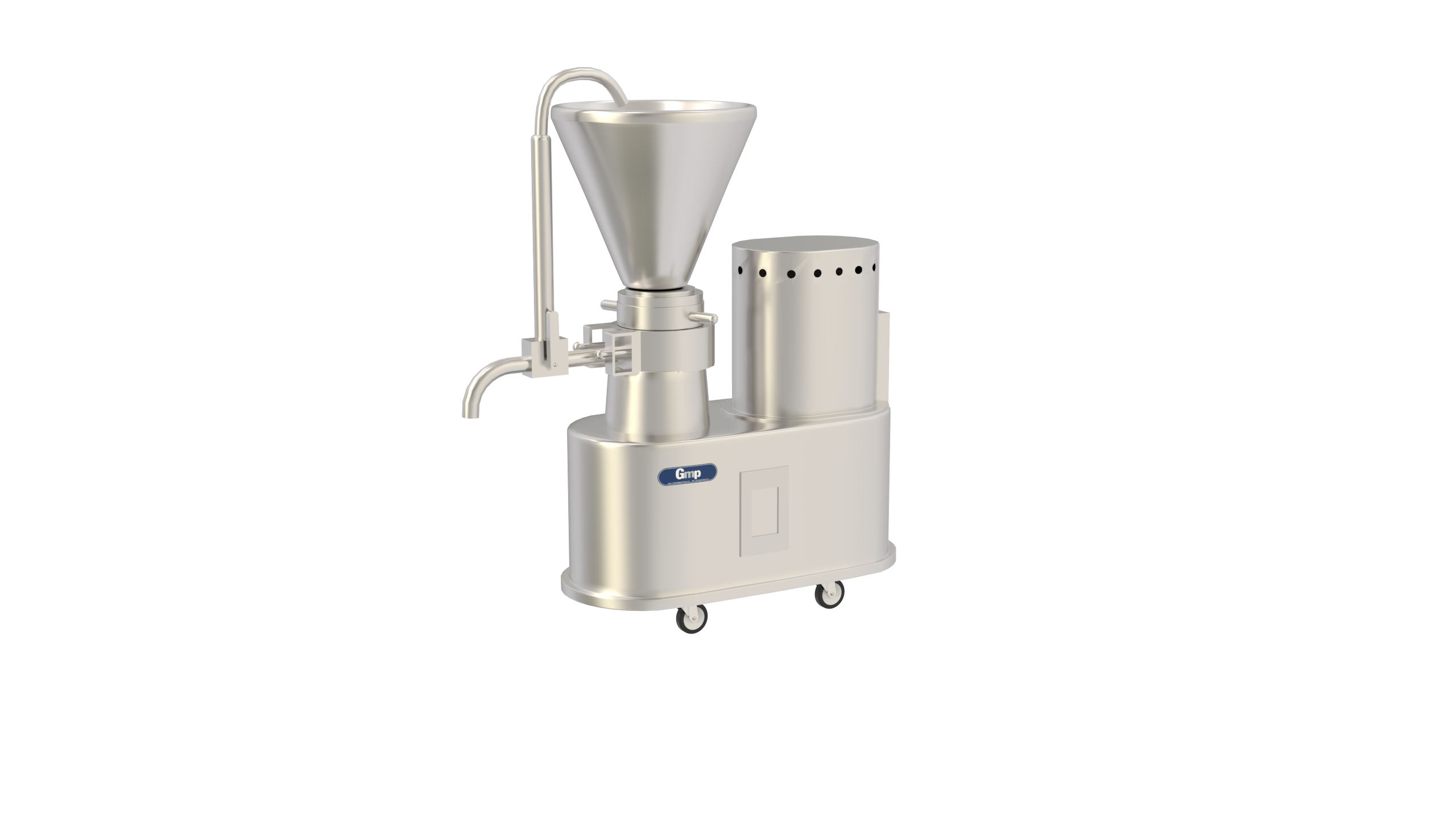

Colloid Mill

Salient Features:

• Compliance with cGMP Model and all contact parts are made of SS 316.

• There are three oil seals between the motor and the processing chamber to prevent liquid going in the motor winding, resulting in the burning of the motor.

• Modified design of semi concave teeth in rotor and stator reduced motor HP and gives better performance in size reduction without damaging the product.

• The unique design of bearing housing provides smooth and consistent all-round performance and long life of rotor and stator.

• Three-way cock for draining and re-circulation of liquids provided.

• Special design facilitates adjustment of grinding gap by an exterior screw by means of handle even during operation.

• Flameproof motor and flameproof switch can be provided on request at extra cost.

Read more

Send Enquiry

Category

Model

GMP-15 (VERTICAL / HORIZONTAL)

Output*

100 to 1500 Liter / Hour

Particle size reduction**

5 to 10 Microne

Hopper capacity

15 Liters

Motor

3 HP / 2850 RPM / 3 Phase
