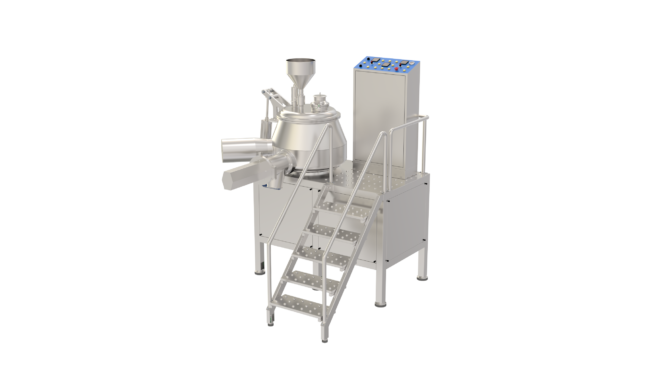

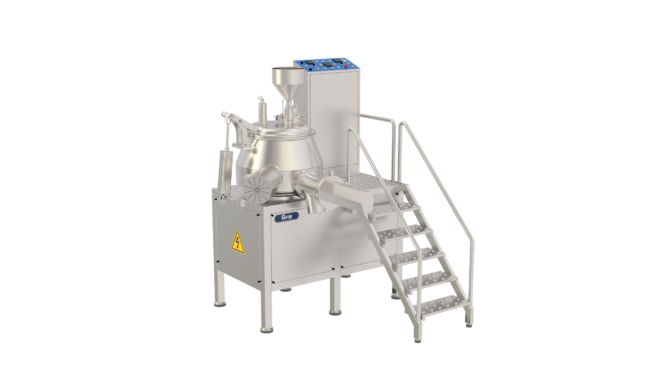

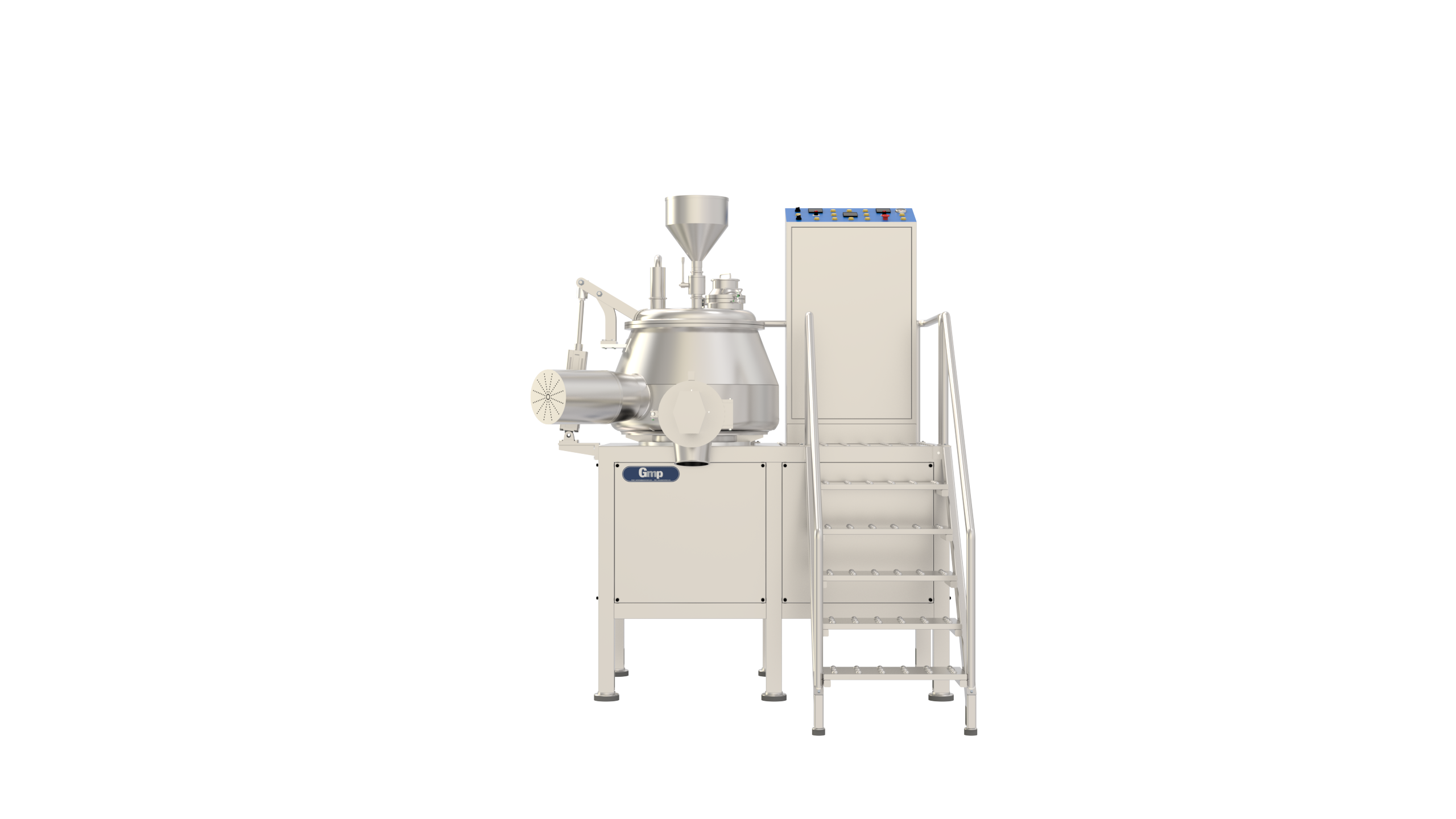

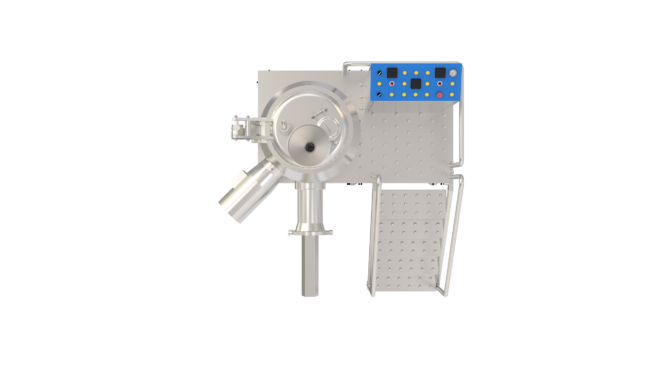

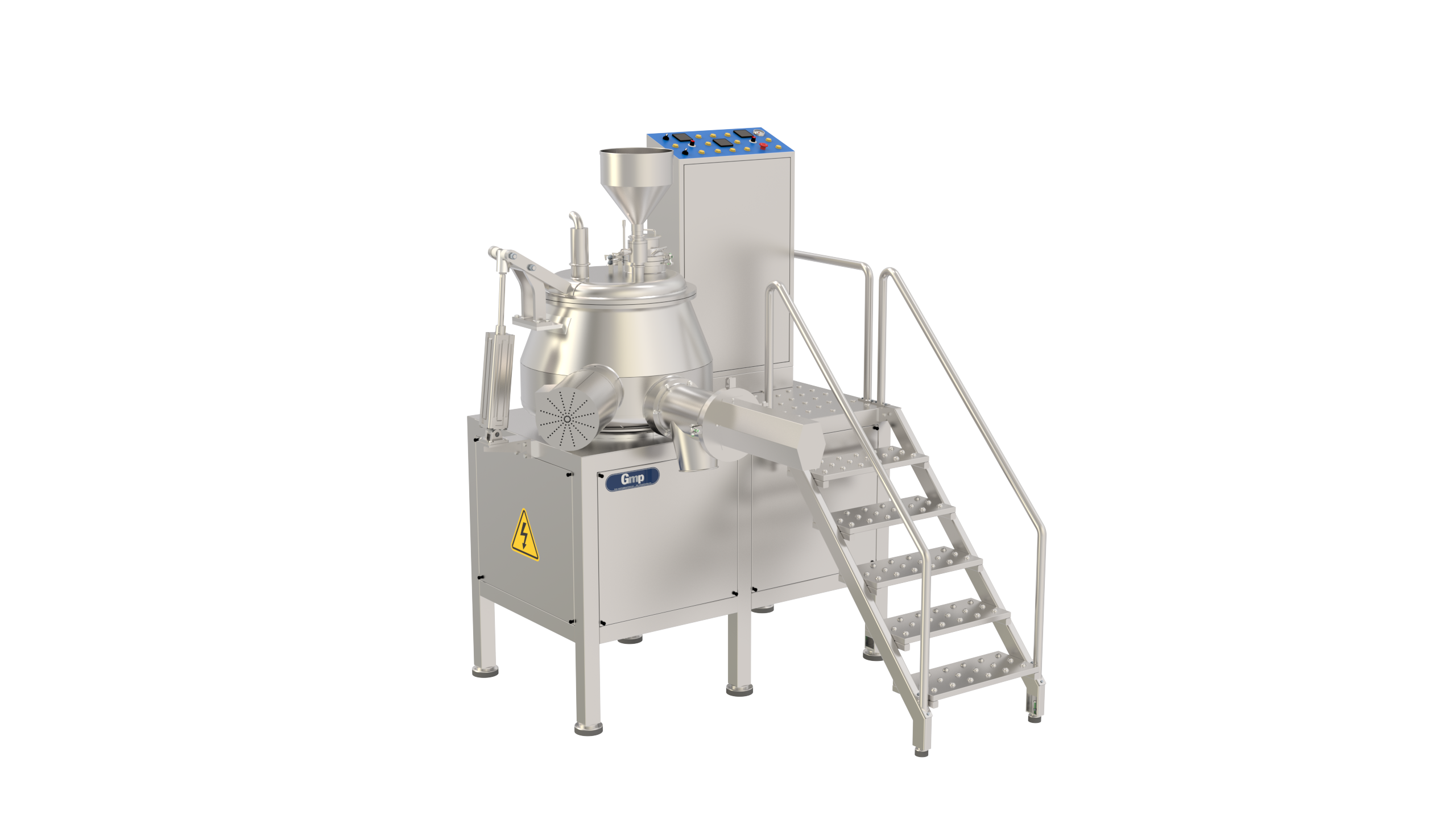

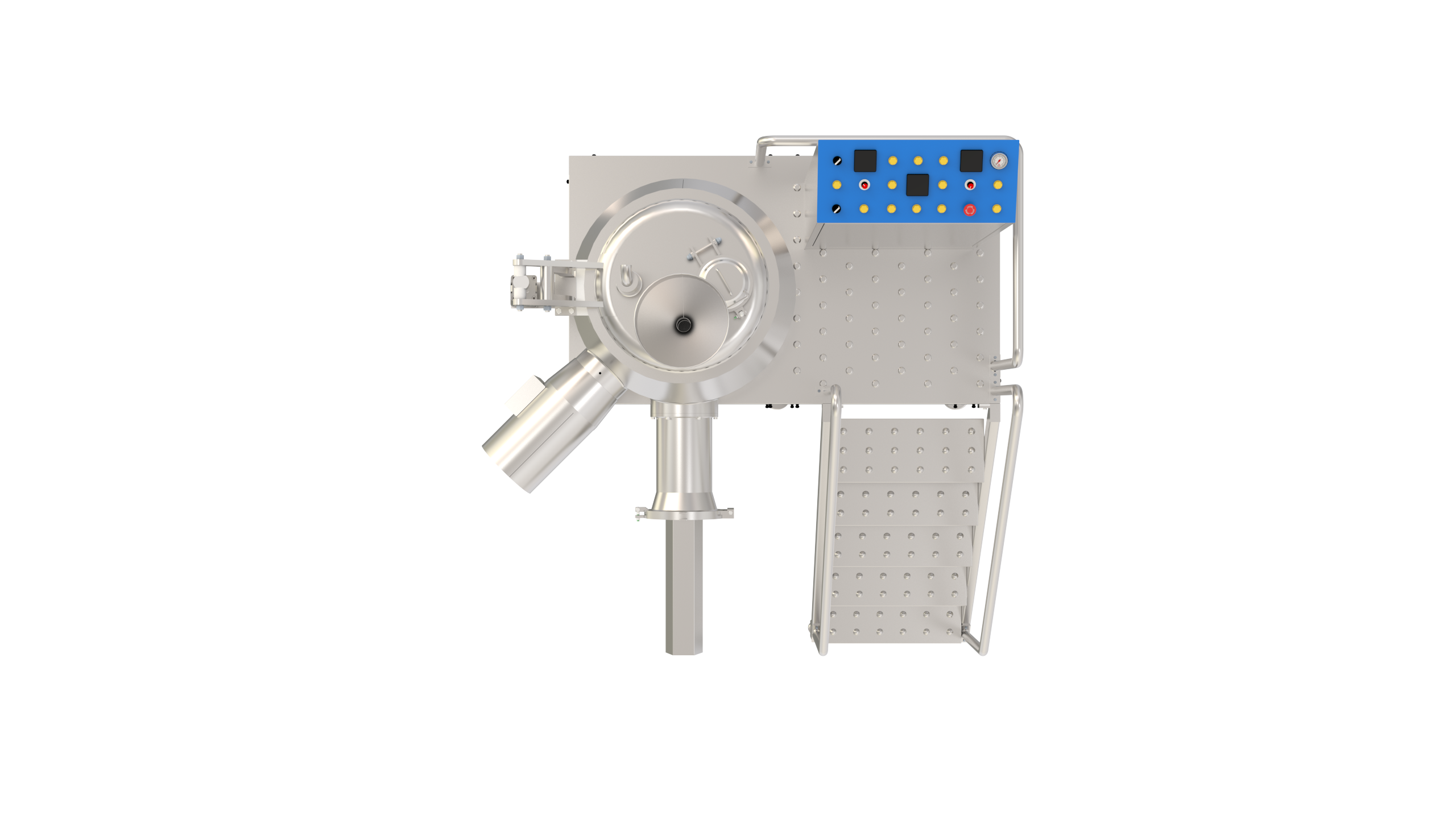

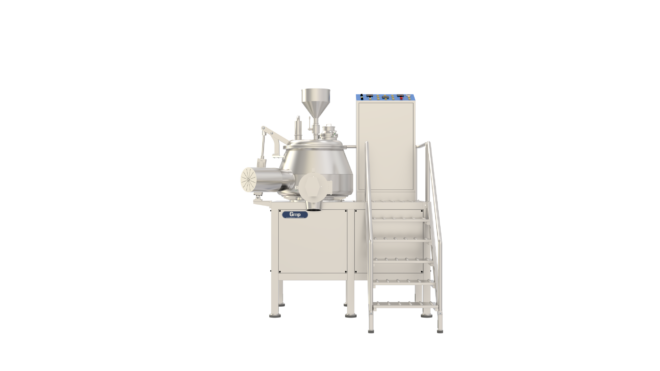

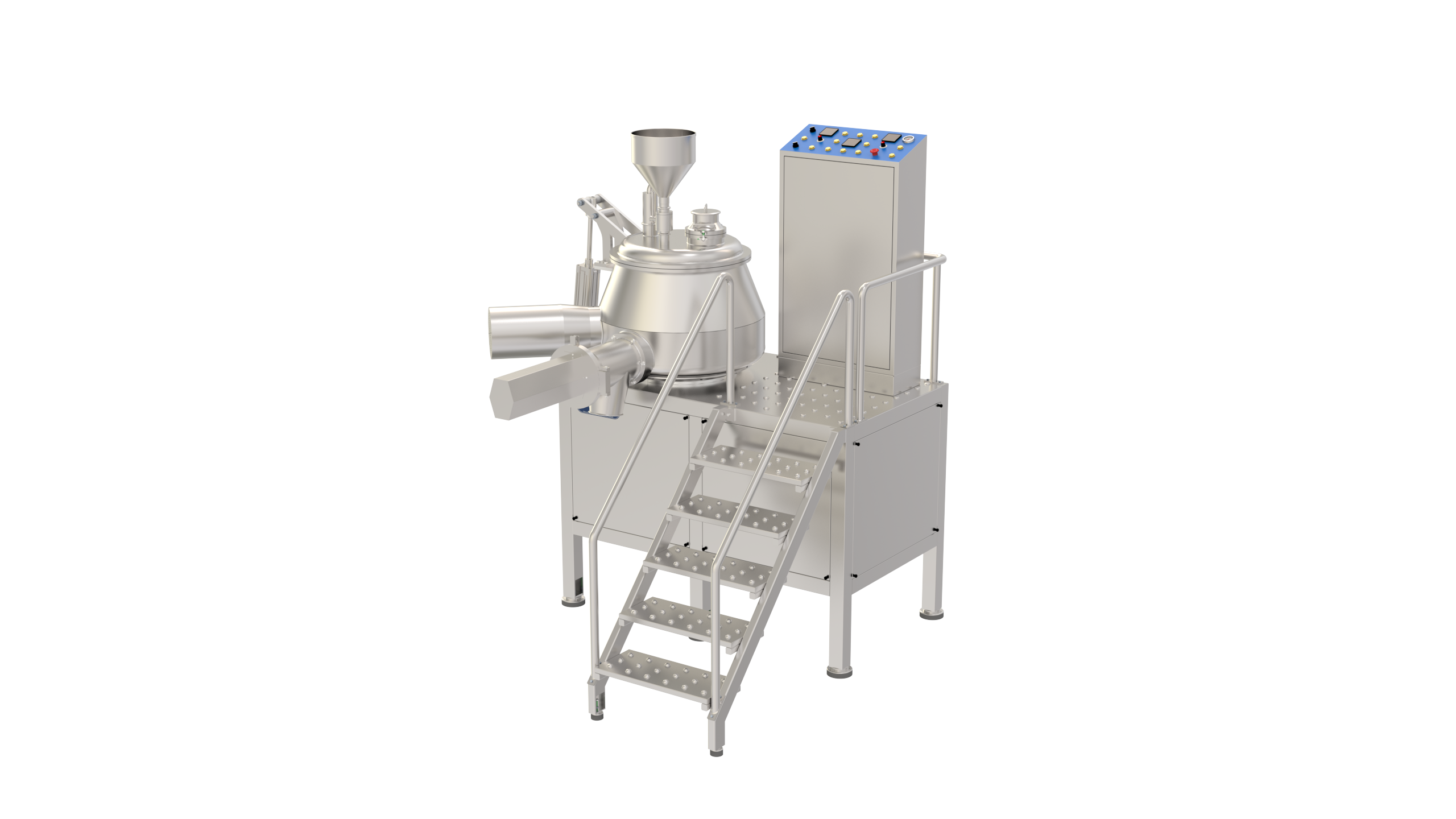

Rapid Mixer Granulator

Salient Features:

• Basic Machine with All Contact Parts SS316 (cGMP Model)

• Pneumatic Discharge

• All Gaskets made of Food Grade Silicon,

• Process air purging system In Impeller bearing housing,

• Pneumatic Lid Opening

• Product Charging Port.

• Reduction Gear Box,

• Variable frequency drives for both motors

• All Motors, Electrical & Pneumatic Parts are reputable brands.

• Manual operations through control panel.

• Powder coated control panel.

• Perfectly engineered mixer & chopper for uniform and homogeneous mixing of substances.

• Shorter mixing and granulating time

• Designed for optimum use of bowl capacity.

• Effective sealing for leak-proof operation

• Easy to clean & maintain.

Read more

Send Enquiry

Category

Model

Gross Capacity

Working Capacity

Batch Capacity

Main Motor HP (750 - 1500 RPM)

Chopper Motor HP (1500 - 2880 RPM)

Gear Box Ratio

RMG - 50

50 Liters

40 Liters

10 - 20 kg

5 HP/ 7.5 HP

2.0 HP/ 3.0 HP

5:1

RMG - 100

100 Liters

100 Liters

20 - 40 kg

7.5 HP/ 10 HP

2.0 HP/ 3.0 HP

7.5:1

RMG - 150

150 Liters

120 Liters

30 - 60 kg

10 HP/ 15 HP

3.0 HP/ 5.0 HP

7.5:1

RMG - 250

250 Liters

200 Liters

50 - 100 kg

22.5 HP/ 30 HP

3.0 HP/ 5.0 HP

10:1

RMG - 300

300 Liters

240 Liters

60 - 120 kg

22.7 HP/ 30 HP

3.0 HP/ 5.0 HP

10:1

RMG - 400

400 Liters

320 Liters

80 -  160 kg

35 HP/ 40 HP

5.0 HP/ 7.5 HP

10:1

RMG - 600

600 Liters

480 Liters

120 - 240 kg

40 HP/ 50 HP

5.0 HP/ 7.5 HP

10:1

RMG - 700

700 Liters

560 Liters

140 - 280 kg

40 HP/ 50 HP

7.5 HP/ 10.0 HP

10:1

RMG - 800

800 Liters

640 Liters

160 - 320 kg

50 HP/ 60 HP

7.5 HP/ 10.0 HP

15:1

RMG - 1000

1000 Liters

800 Liters

200 - 400 kg

60 HP/ 90 HP

10.0 HP/ 15.0 HP

15:1

RMG - 1200

1200 Liters

960 Liters

240 - 480 kg

80 HP/ 100 HP

10.0 HP/ 15.0 HP

15:1
