Automatic Ointment Manufacturing Plant

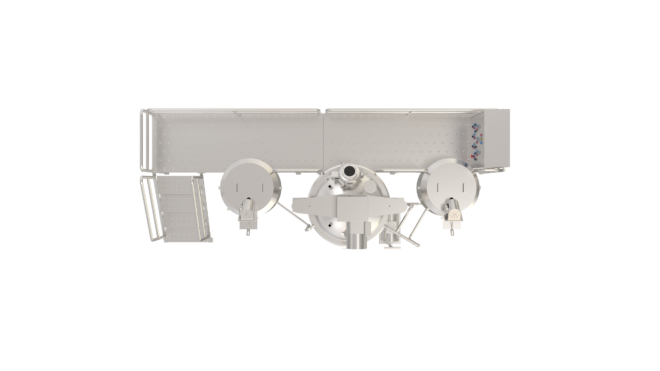

“GMP’s” Ointment Manufacturing Plants process homogenization of semi-solid with liquid components to produce ointments, creams, lotions & gels. There are three different vessels for individual operations connected with each other through pipelines & valves to process as one complete automatic ointment manufacturing plant. Water phase vessel heated the water and wax phase vessel melts the jelly or wax into a liquid state, then the manufacturing vessel performs blending operations of all the available ingredients. Bottom and top entry agitators onto the vessel provided for homogeneous blending. Further high-speed chopper provided at the bottom of the manufacturing vessel for high shear mixing operations.

Salient Features:

• cGMP production plants.

• Minimum human involvement.

• Option of PLC, HMI based model.

• 21 CFR Part 11 compliant SCADA package available on demand. (optionally)

• Almost zero vacuum drop during the mixing and blending process.

• Ideal to produce ointments, lotions, gels, creams.

• All Contact Parts are in S.S. 316 & Non – Contact Parts are SS 304.

• Hydraulic lid lifting arrangement of the main vessel to facilitate cleaning at the time of product changeover.

• Variable speed provided for stirrer and homogenizer for different speeds.

• All transfer done through vacuum to avoid any hand touch and contamination.

Read more

Send Enquiry

Category

Model

100 Kgs

300 Kgs

Vessels

Manyfacturing Vessel

Working Volume (Kgs)

100

300

Gross Volume (Kgs)

225

450

Wax Phase Vessel

Working Volume (Kgs)

50

150

Gross Volume (Kgs)

100

250

Water Heating Vessel

Working Volume (Ltrs.)

50

150

Gross Volume (Ltrs.)

100

250

Storage Vessel

Working Volume (Kgs)

100

300

Gross Volume (Kgs)

125

500

Ointment TRansfer Pump (Lobe Pump)

1

1

Vaccum Pump

2

3

Approx Celling req. (mm)

2050

2300
